Why are the pile heads it cuts so smooth? — Exploring how the hydraulic pile breaker protects pile reinforcement

In pile foundation construction, the seemingly simple task of cutting off pile heads often determines the “final quality” of the entire foundation. Many contractors have experienced this firsthand — poor pile head treatment leads to endless problems later.

Traditional methods using pneumatic picks or breakers may be cheap and simple but struggle to balance efficiency and quality. Because the results depend heavily on manual operation, problems such as uneven pile tops, concrete cracks, bent or even broken reinforcement bars frequently occur.

These issues are more than cosmetic flaws — they are hidden structural risks. Once the rebar is damaged, the overall load-bearing capacity of the pile is reduced, jeopardizing the safety of the structure above. In severe cases, rebar replacement or pile repair becomes necessary, causing project delays and added costs. For projects that demand high construction standards, such consequences are unacceptable.

Thus, the industry began asking a crucial question: Can we remove concrete quickly without damaging the reinforcement?

The answer comes from a new generation of construction equipment — the hydraulic pile breaker.

Replacing manual impact with synchronized hydraulic cutting, it enables precise concrete removal while leaving every reinforcing bar perfectly intact. The result is a smooth, level pile head as if cut by a blade. The hydraulic pile breaker is redefining the standard of pile cutting and becoming essential equipment for high-quality projects.

Construction Pain Points: The Consequences of Damaged Rebar

In pile foundation construction, rebar is the “skeleton” of the pile and the key to its load-bearing strength and durability. However, in traditional pile cutting methods, the rebar often becomes the biggest casualty.

1. Technical Aspect: Broken rebar means compromised strength

The main reinforcement bars transfer the load from the upper structure to the ground. Once they are bent, broken, or stripped during cutting, the bond between concrete and steel weakens. This leads to uneven stress distribution and reduced bearing capacity. Such defects may not be visible during construction but can cause structural issues or failures later.

2. Economic Aspect: Repair costs far exceed expectations

Many contractors assume that using a pneumatic pick is cheaper, but the opposite is true.

When rebar is damaged, repair requires secondary cutting, welding, or rebar planting — increasing labor, material, and time costs. For example, in a bridge foundation project, if two or three bars per pile need repair, the total cost and delay can easily exceed several times the price of using a hydraulic pile breaker.

3. Safety Aspect: High vibration, dust, and risks with traditional methods

Pneumatic picks generate intense impact and flying debris, forcing workers to operate at close range under unsafe conditions. The noise and dust also create an unhealthy work environment and fail to meet modern urban construction standards.

Therefore, ensuring flat pile heads and intact rebar — efficiently and safely — has long been a pain point. The hydraulic pile breaker was born to solve exactly this problem.

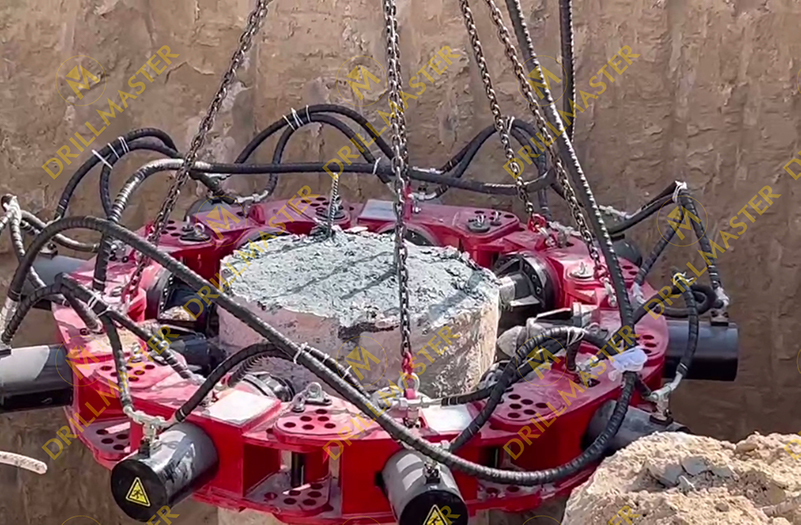

How the Hydraulic Pile Breaker Works: Breaking Concrete Without Damaging Steel

Unlike traditional impact methods that damage both concrete and steel, the hydraulic pile breaker achieves “concrete-only” breaking through precise control of force direction, magnitude, and duration.

1. Multi-cylinder synchronized hydraulic system: balanced and precise

Equipped with multiple calibrated hydraulic cylinders, the breaker applies uniform pressure around the pile. The resulting circumferential stress causes controlled cracking of the concrete, enabling quick, clean removal.

In contrast, pneumatic picks deliver concentrated point impacts that generate strong vibrations, often deforming or breaking the rebar. The hydraulic system's balanced force prevents such damage.

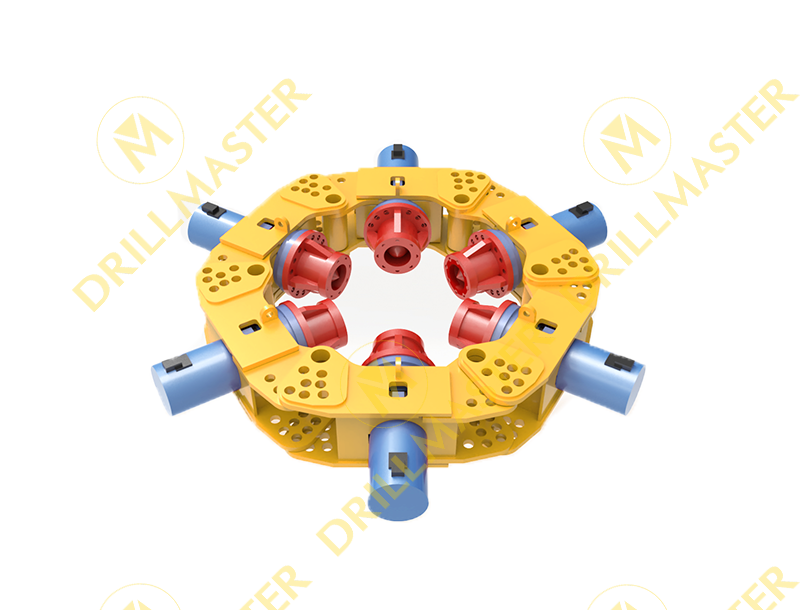

2. Circular cutter ring: surrounding, not striking

Cutter teeth are evenly arranged in a circular ring around the pile. When activated, the ring clamps and presses the concrete from all directions, causing it to crack and peel away. The steel bars, being ductile and resilient, remain unaffected.

This difference — “surrounding pressure” versus “point impact” — is the essence of why hydraulic breakers protect reinforcement.

3. Low vibration, low noise, high safety

Using static hydraulic pressure instead of high-frequency impact, the process generates almost no shockwaves or vibration. Dust and noise are also minimized, making it ideal for urban and environmentally sensitive projects.

Why the Pile Head Is So Flat: The Science of Precision and Synchronization

On-site, people are often amazed — pile heads cut by a hydraulic breaker are smooth and level, while those done with pneumatic tools are rough and uneven.

This difference comes not from operator skill but from mechanical precision and force control.

1. Synchronized pressure — perfectly even stress

Multiple hydraulic cylinders apply uniform circumferential pressure, creating a natural “shear plane” where the concrete fractures cleanly across one level.

2. Static pressure — no rebound or secondary damage

With no impact or rebound, the concrete simply separates once internal stress reaches its limit, leaving a smooth, clean surface that requires no secondary trimming.

3. A comparison in craftsmanship precision:

Item	Hydraulic Pile Breaker	Pneumatic Pick / Breaker
Surface Flatness	Excellent	Poor
Rebar Protection	Intact	Prone to bending/breakage
Operational Control	Automatic, synchronized	Manual
Secondary Finishing	None required	Often needed
Noise & Dust	Very low	High

The result is clear — hydraulic cutting not only looks better but also ensures a perfect bonding surface for pile caps and improves overall structural accuracy.

In short, the hydraulic pile breaker delivers perfection not through brute force, but through scientific control of mechanical stress.

Protecting Rebar = Ensuring Strength + Saving Costs

Rebar integrity determines pile performance. The hydraulic pile breaker's greatest value lies in returning each bar to the designer's intended condition — undamaged. This is both a mark of quality and a solid economic gain.

1. Ensuring load capacity

A pile's bearing strength depends on the bond between rebar and concrete.

Traditional tools often bend or break rebar, altering stress distribution and reducing load capacity.

Hydraulic breakers maintain rebar straightness and bonding strength, ensuring full design performance.

2. Reducing repair costs

Each avoided repair means saved labor, materials, and time.

In a 100-pile project, saving even one hour per pile can significantly shorten project duration and increase profitability.

3. Boosting efficiency

Hydraulic breakers can cut 10–15 piles per hour — 3–5 times faster than manual methods. Shorter schedules reduce equipment rental, supervision, and indirect costs.

4. Safety and environmental gains

Low noise, no flying debris, remote operation — all make hydraulic breakers compliant with modern urban and environmental standards.

The hydraulic pile breaker delivers not just smooth pile heads — but safer structures, lower costs, faster progress, and better quality overall.

Spend Money Where It Matters

The quality of a pile head is not a trivial detail — it reflects the project's safety and workmanship.

Many contractors once believed “any tool that works is fine,” only to fall into the cycle of cheap tools → rebar damage → costly repairs → higher total cost.

True savings come not from the cheapest tool but from the most efficient and reliable one.

The hydraulic pile breaker is precisely such an investment — turning brute force into controlled precision, cutting concrete cleanly while keeping every rebar intact. Each cut represents a calculation in applied mechanics; each smooth pile head, a proof of engineering excellence.

For contractors pursuing both efficiency and quality, adopting hydraulic pile breaking is more than an equipment upgrade — it's a shift in construction philosophy:

From “manual impact” to “controlled precision,”

From “speed by labor” to “quality by technology,”

From “post-repair” to “prevention first.”

Because in modern construction, every detail reflects an attitude:

A smooth pile head shows respect for structure;

An intact rebar shows responsibility for safety.

So next time you see a ring of perfectly cut piles on site, remember —

Their perfection isn't coincidence, but the result of scientific control and smart investment.

That smooth finish stands for one simple truth:

The best results come when you spend on what truly matters.
