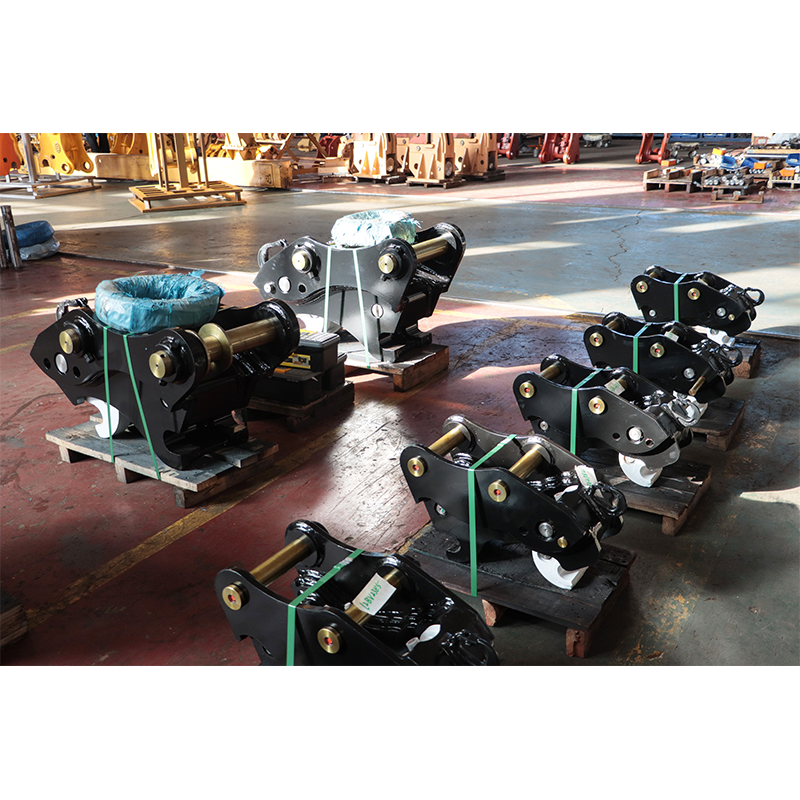

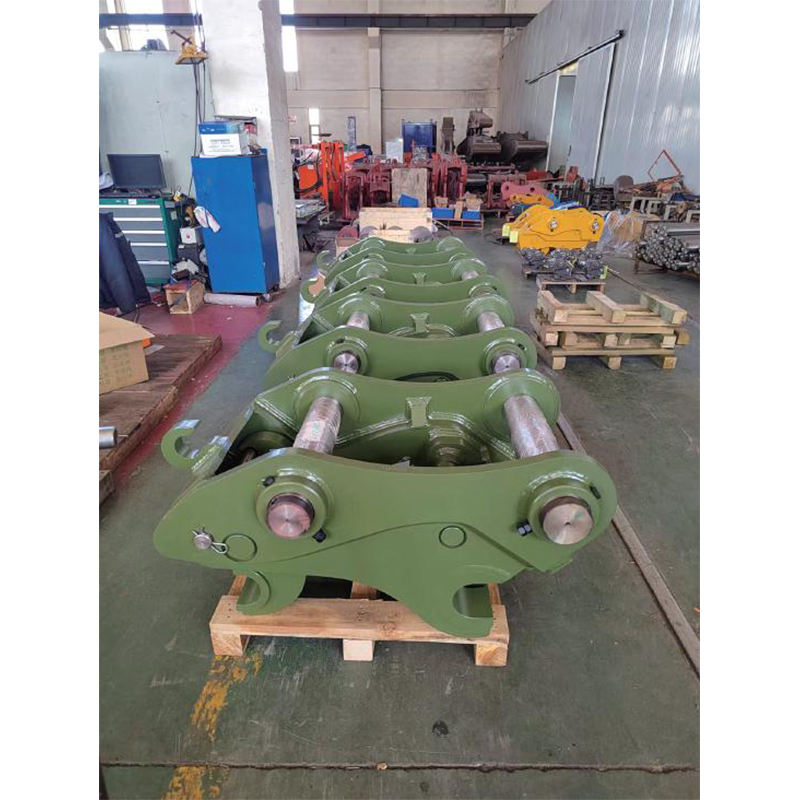

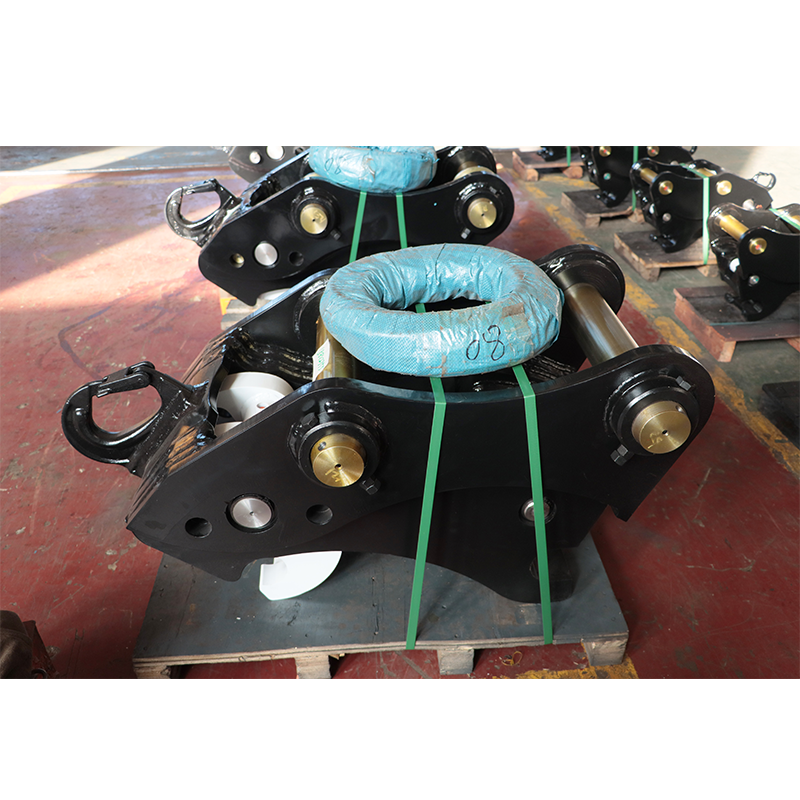

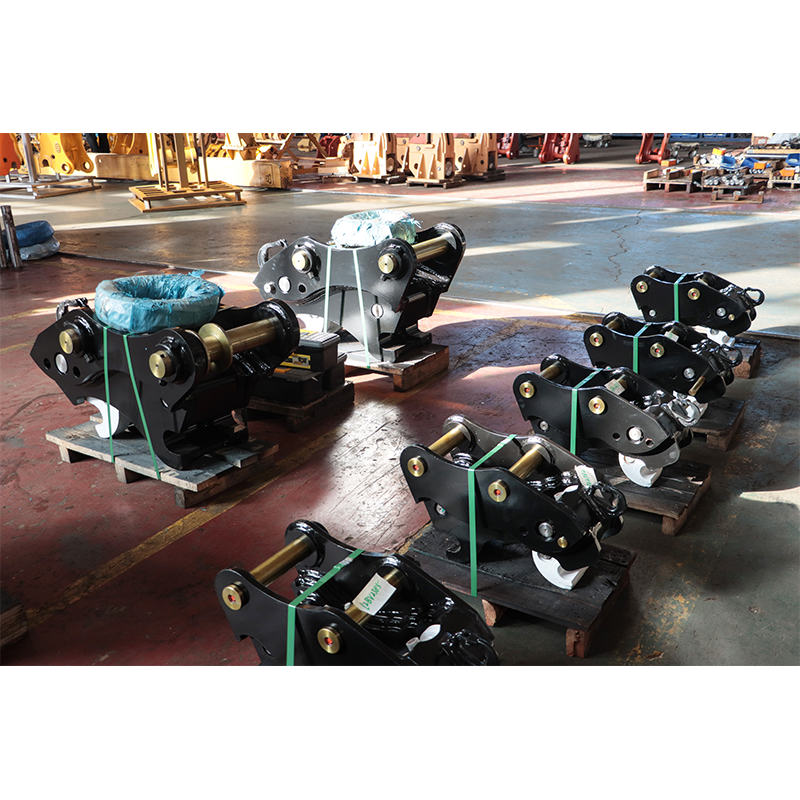

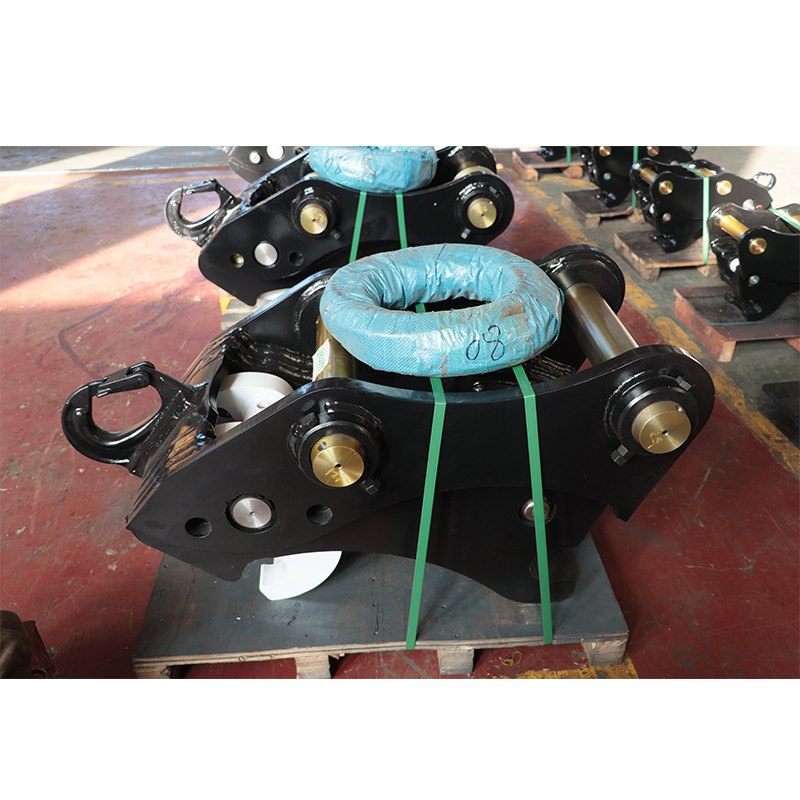

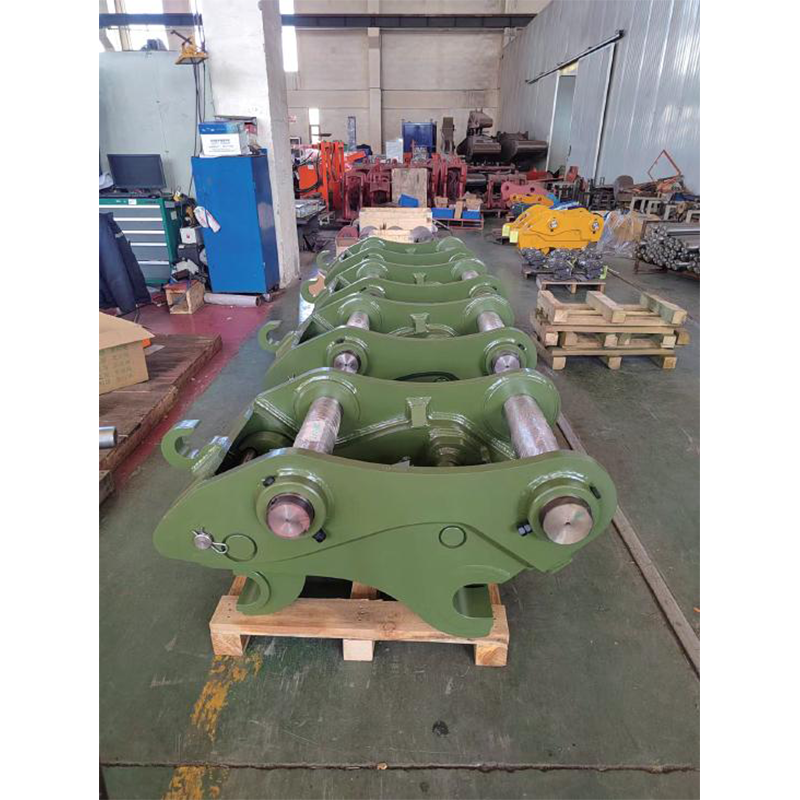

P Type Quick Hitch Coupler

Chat Online Leave Message

Specifications

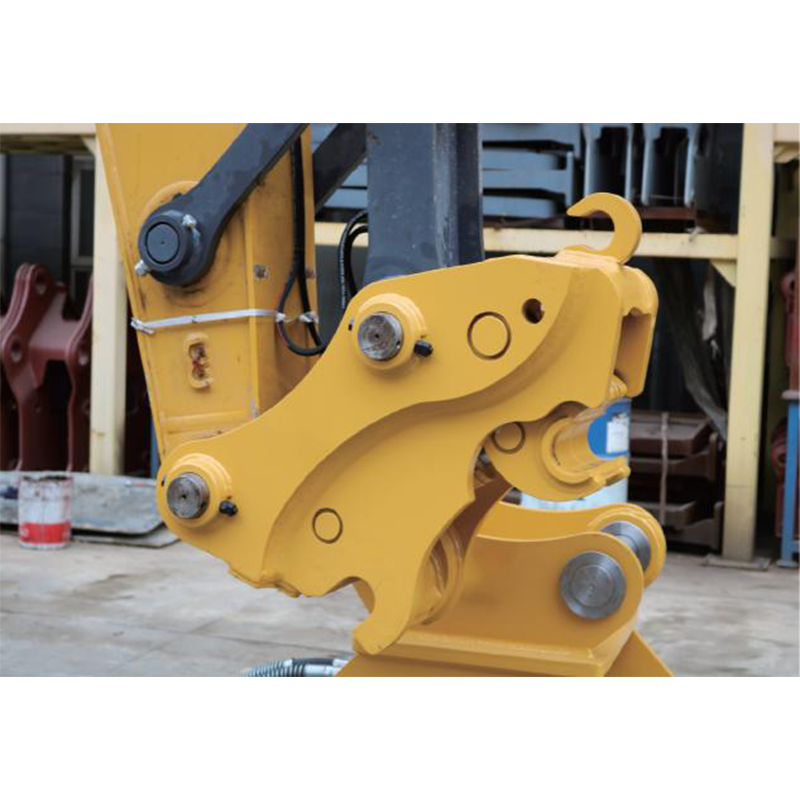

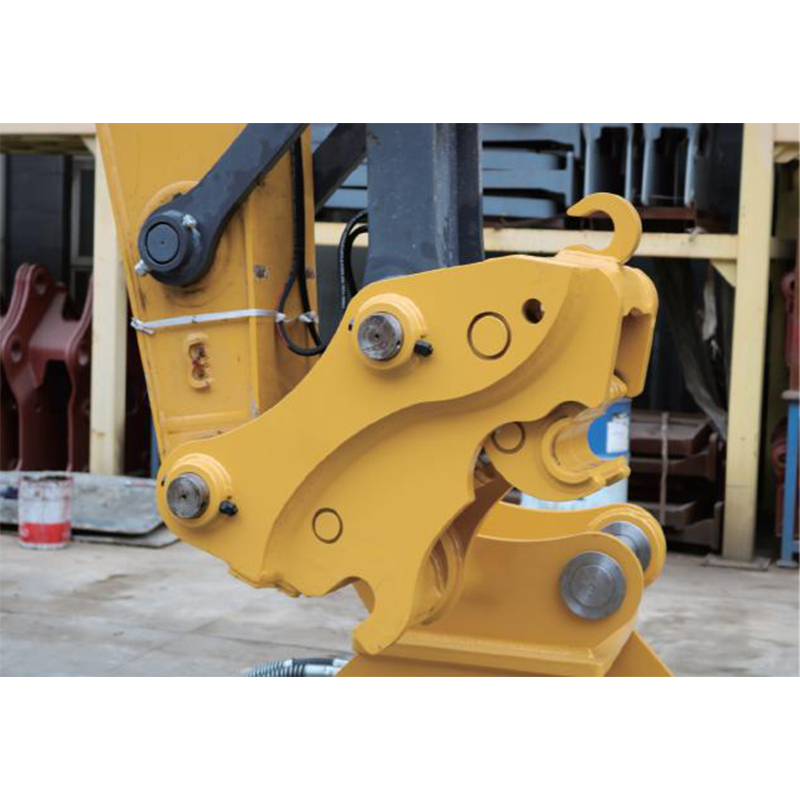

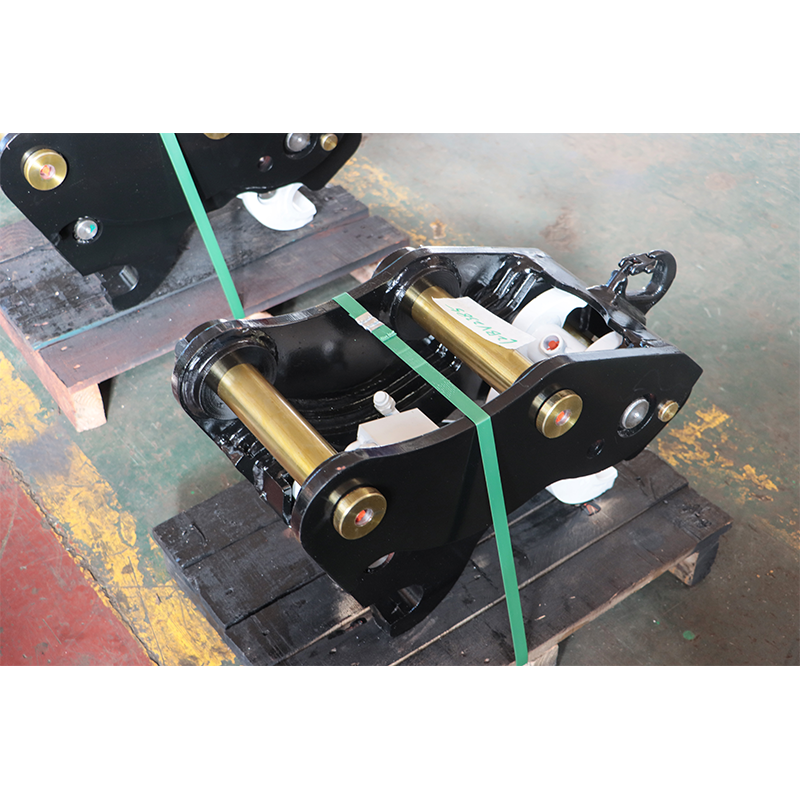

JXM quick hitch coupler is made by high strength manganese steel, structural integration design and hard-wearing quality.It applicable to all kinds of tonnage excavator’s assembly requirement.
The operator’s cabin is equipped with an electric switch which is convenient for the driver’s operation.It replacing the high cost oil pressure by electric power.
Each oil cylinder is equipped with check valve and a mechanical locking safety device to ensure the oil flow.To enable coupler to regular work when the oil circuit on or cut off.
Each quick hitch coupler have installed safety pin to protect system, also ensure normal operation when cylinder failure as “dual protect” function.

Parameters

Model	Unit	MINI	JXK-02	JXK-04	JXK-06	JXK-08	JXK-10	JXK-17	JXK-20
Length	mm	300-450	550-595	590-630	795-825	888-980	980-1060	1050-1250	1050-1250
Height	mm	250-280	312	320	410	520	608	620	620
Width	mm	170-230	270-300	300-355	365-420	460-500	510-590	580-650	580-680
Pinscenter distance	mm	90-210	225-285	285-360	370-420	430-500	470-550	540-600	540-600
Arm width	mm	90-140	155-200	160-230	220-275	300-350	340-420	420-500	420-500
Cylinder stroke	mm	35	75	75	85	70	80	80	80
Vertical pins center distance	mm	150-170	200	200	260	325	385	400	400
Weight	kg	30-50	50-80	70-100	220-290	370-420	500-600	650-900	700-1000
Working pressure	bar	40-200	40-200	40-200	40-200	40-200	40-200	40-200	40-200
Suitable excavator	ton	1.5-4	4-6	6-10	10-16	16-24	24-32	34-42	45-52
