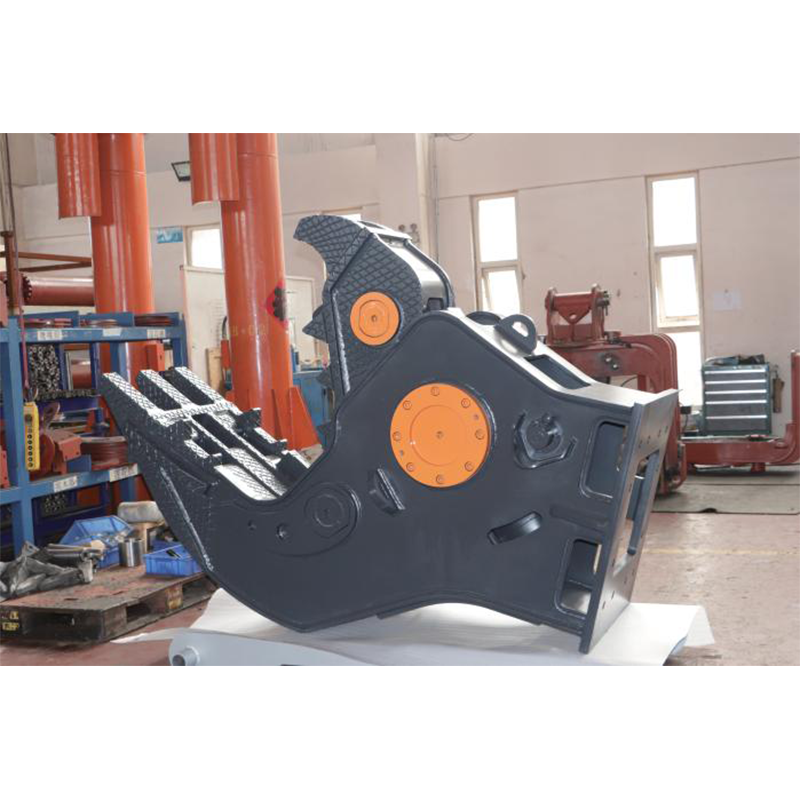

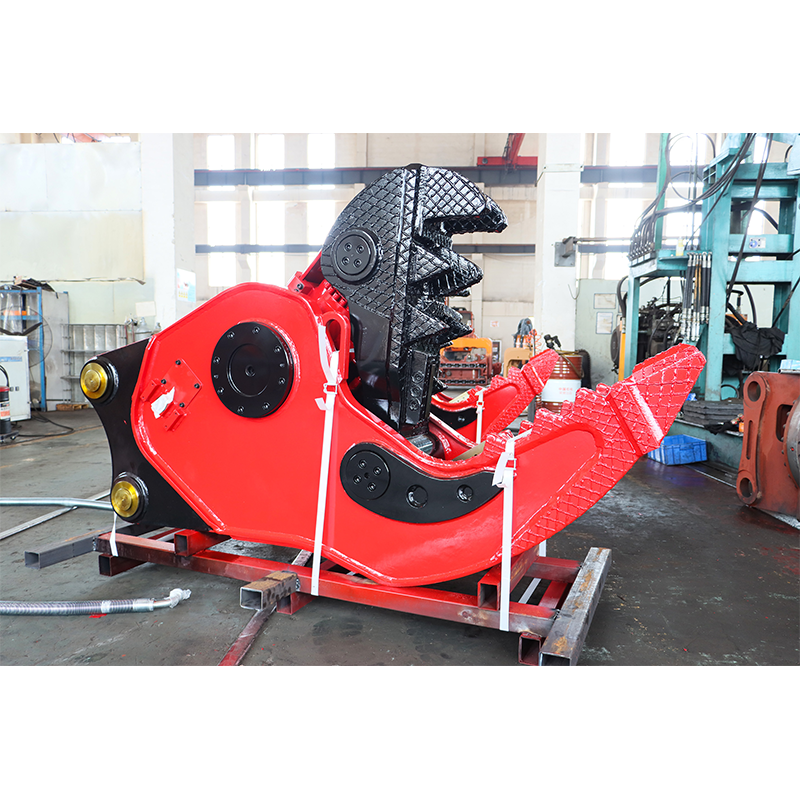

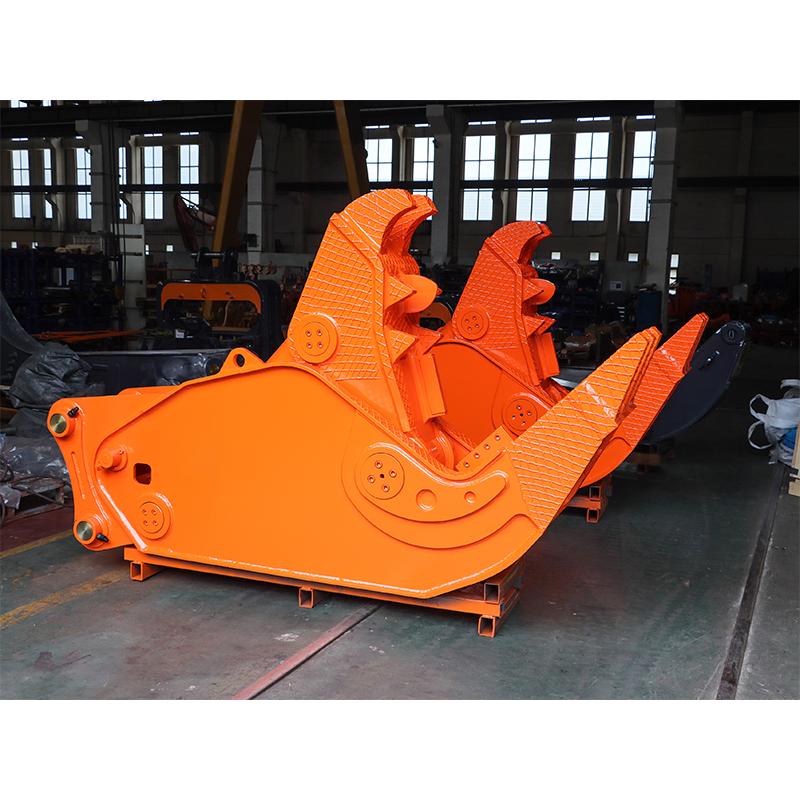

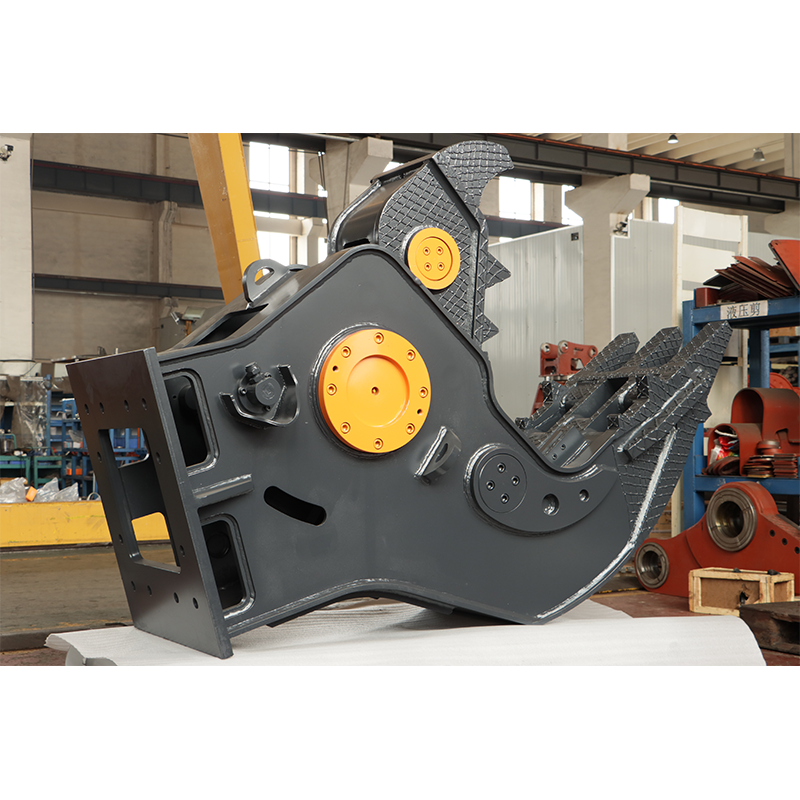

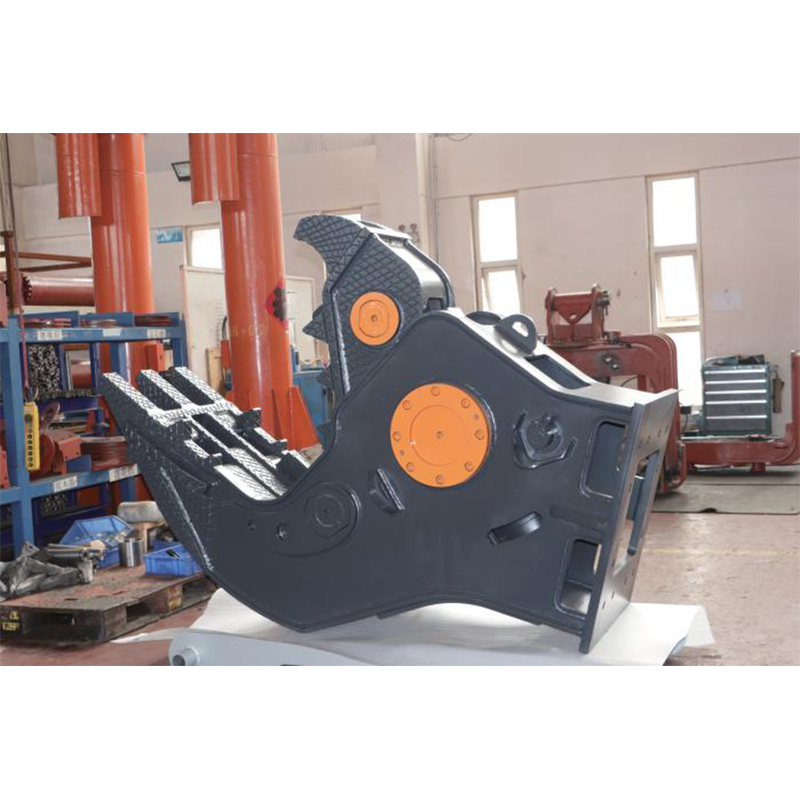

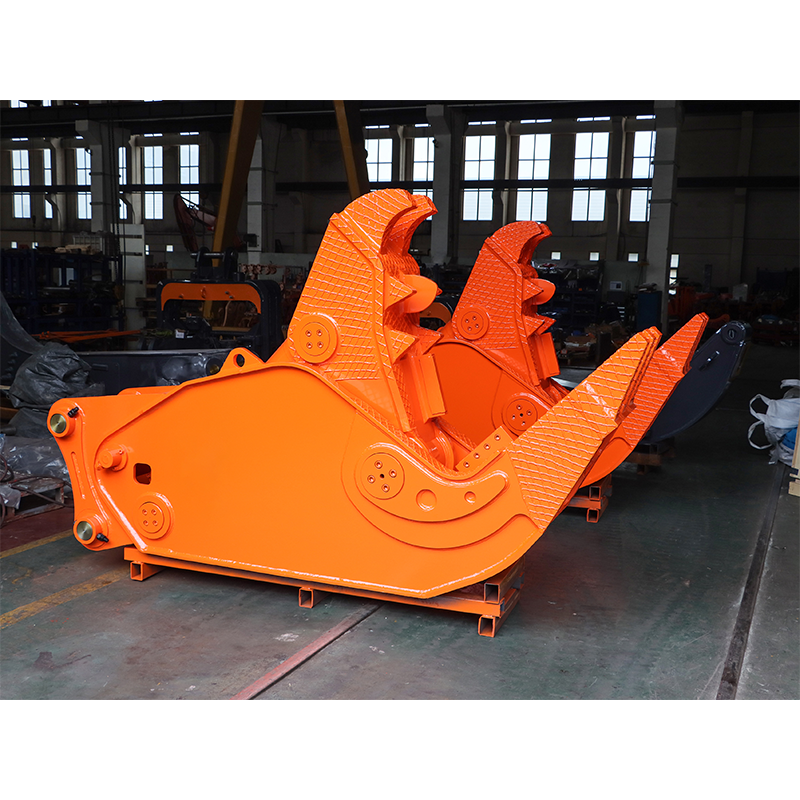

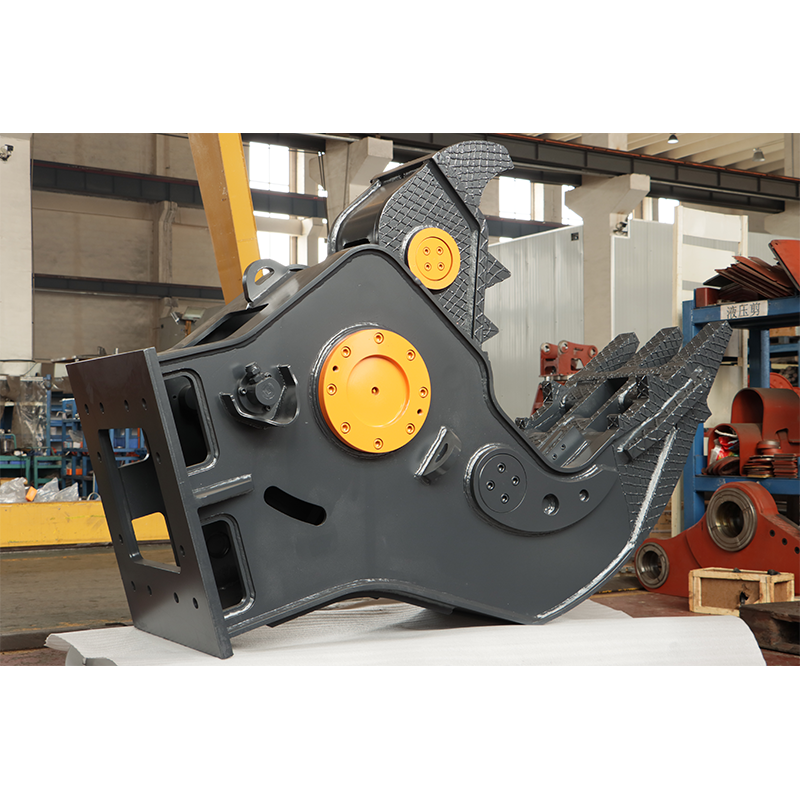

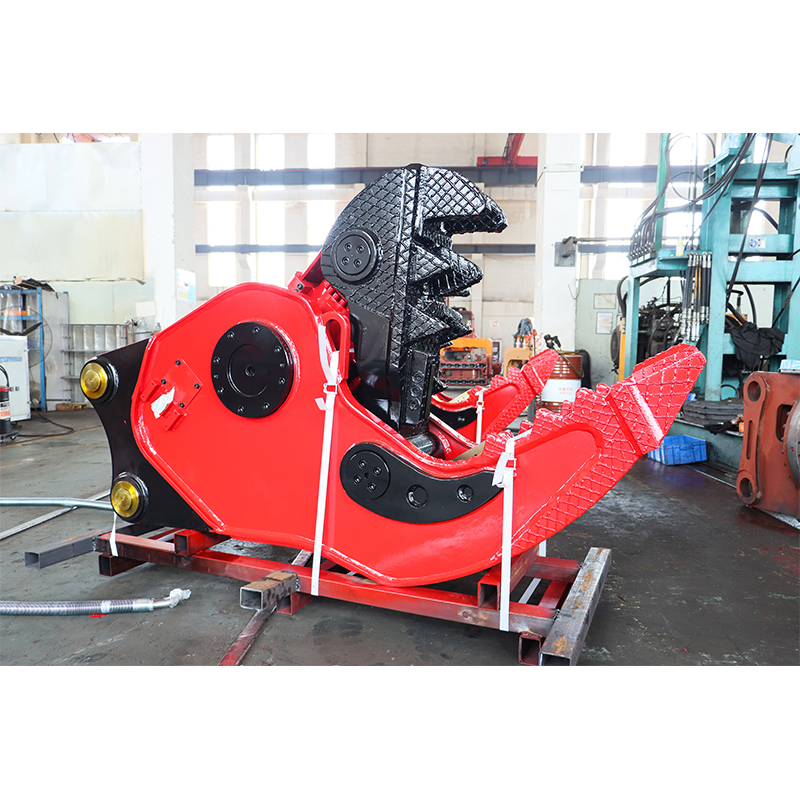

Hydraulic Pulverizer

The hydraulic crushing pliers are composed of an upper jaw shell cylinder, and the upper jaw is composed of a toothed blade external hydraulic system to provide oil pressure for the hydraulic cylinder, so that the upper jaw of the hydraulic crushing pliers and the fixed jaw are tensioning to achieve the effect of crushing objects.



Types: upper ear type, upper ear rotation type, flat plate connection type.

Specifications

Hydraulic Pulverizer

  • It is used for secondary crushing of steel and concrete and separation of steel and concrete.
  • It has the unique layout design of the jaw teeth,with double- layer wear resistance protection, and is made of imported HARDOX400 sheet material.
  • The structure is optimized through load design to balance the opening size and crushing force.
Parameters
Model Unit PU04C PU06J PU08K PU10A
Dead-weight kg 695 1200 1850 2900
Max Opening mm 610 700 840 1000
Length mm 1635 1800 2280 2374
Width mm 469 546 610 800
Max Crushing Force ton 47 62 165 225
Max Shear Force ton 87 91 160 264
Blade Length mm 120 150 180 200
Driving Oil Pressure bar 230 300 320 380
Suitable Excavator kg 6-9 6-12 18-26 26-35
