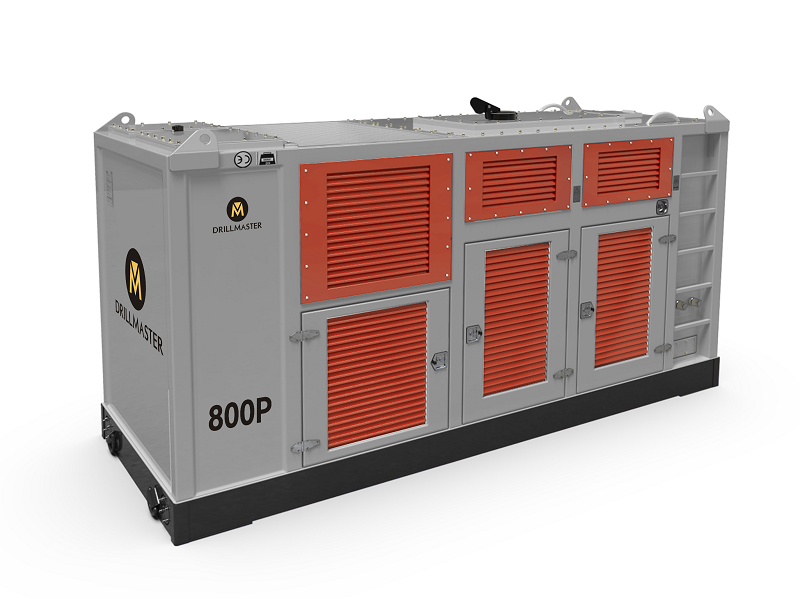

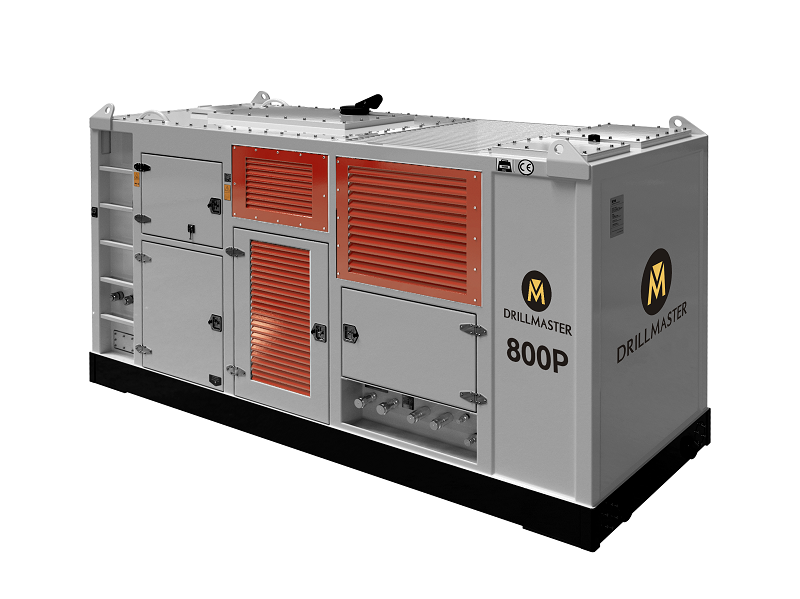

Hydraulic Power Pack Power Station For Pile Hammers

Drillmaster Machinery Hydraulic Power Pack equipped with CAT diesel engine, Rexroth hydraulic system and is connected by Eaton tubing.The quick dis-connectors also take ordinary DNP from ltaly.All details make the equipment safe, reliable,durable and efficient in the whole working jobsite.

Chat Online Leave Message

Parameters
Inquiry

Parameters

Power Pack	400P	500P	600P	800P	1000P	1200P	1600P	2600P	3000P	3500P
Engine Type	CUMMINS	CUMMINS	CAT C15	CAT C18	Weichai	KTA38	KTA38	CUMMINS	CUMMINS	S16R-Y1PTAA2-3
Max. Power (KW/HP)	264	298	403	522/700	670/915	895/1200	1007/1350	1492/2000	1492/2014	1939/2599
Max. Frequency (rpm)	2200	2100	2100	2100	1900	1800	1900	2000	2100	1500
Working Pressure (bar)	320	320	320	320		320	320	320	320	320
Max. Oil Flow (L/min)	400	500	630	800	1000	1200	1600	2600	2600	3500
Diesel Tank Volume(L)	500	500	600	600	1100	1000	1000	1400	1400	1420
Hydraulic oil Tank Volume (L)	1400	1600	2000	2200	2700	4200	4200	5200	5200	6400
Length (mm)	3910	3910	4550	4450	5650	6050	6050	7310	7310	8200
Width (mm)	1520	1520	1820	1850	1920	2350	2350	2360	2360	2920
Height (mm)	2100	2100	2400	2520	2550	2820	2820	2750	2750	3600
Weight(kg)	6000	6000	8200	9000	10500	20000	20000	23500	23500	38000
Suitable for Vibratory hammer models	MZ-90D	MZ-110D MZ-150	MZ-180B	MZ-230 MZ-230F MZ-230B MZ-280L		MZ-300 MZ-400 MZ-300L MZ-300×2	MZ-400 MZ-400B MZ-400×2 MZ-400Bx2	MZ-600	MZ-600	MZ-800B MZ-800Bx2
Suitable for impact hammer models	MC-10 MC-11 MC-12 MC-14 MC-15 MC-16 MC-17	MC-16 MC-17	MC-21 MC-25 MC-30	MC-35 MC-40		MC-50 MC-60	MC-80	MC-110 MC-120 MC-130 MC-150 MC-180	MC-110 MC-120 MC-130 MC-150 MC-180
