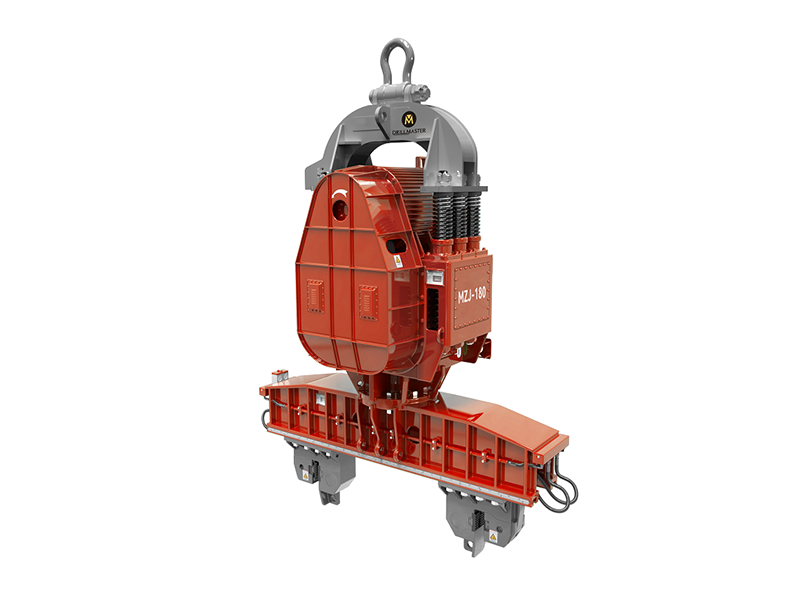

Electric Vibratory Hammer for Driving Piles and Casings

Chat Online Leave Message

Introduction

Vibration-optimized motors with 95°C-rated bearings and short-term overload capability for intense operational demands.
Lubrication oil sludge sedimentation tank design, this design can make the foreign objects accidentally dropped into the box and the dirt generated by the normal wear and tear of the equipment to settle down without causing damage to the gears or bearings.
Rubber isolators replace spring dampers, achieving a 10% more compact hammer profile with quieter operation and crane-friendly vibration control.
Incorporates identical gearbox engineering from hydraulic impact hammers, achieving a sleeker precision-engineered footprint.
Dual-function shear pins: Prevent damping rubber overstretch damage while featuring load-indicator markings for real-time vibratory force monitoring.
Single-piece clamp design achieves space-saving dimensions with reinforced clamping force.
Clamping jaw plate is made of ultra-high-strength special alloy steel with high-precision lathe and grinder, and its wear-resisting characteristics have been consistently affirmed by the market for many years.

Parameters

Model	MZ-45	MZ-60	MZJ-90	MZJ-90B	MZJ-120	MZJ-135	MZJ-150	MZJ-180	MZJ-200	MZJ-240	MZJ-300	MZJ-400	MZJ-480	MZJ-600
Motor Power (KW)	45	60	90	90	120	135	150	180	200	240	300	400	480	600
Eccentric Moment (NM)	29	50	58	48	76	80	114	126	163	184	220	324	368	440
Centrifugal Force (kN)	380	492	0-579	0-580	0-823	0-883	0-1140	0-1390	0-1600	0-1822	0-2185	0-3250	0-3644	0-4370
Max. Frequency (rpm)	1100	960	960	1060	1000	1000	960	1000	960	960	960	960	960	960
Max. Amplitude (mm)	8.5	12	11.5	11	12	13	15	12.7	16	14	16.5	16	14	16.5
Max. Line Pull (kN)	180	215	254	300	392	420	450	530	588	638	686	850	1176	1352
Length (mm)	1600	1600	1700	1600	1850	1900	1950	2100	2150	2300	2450	2150	4000	4420
Width (mm)	1050	1130	1400	1200	1350	1450	1400	1650	1750	1850	2000	2350	1950	2150
Height (mm)	2000	2150	2350	2200	2500	2520	3025	3050	3250	3400	3450	4800	5300	5500
Weight(clamps not included)(kg)	3800	4500	5700	5200	7000	7200	8700	11000	11500	14500	15000	25000	30000	30500
Wire Cable(mm²)	25	35	50	50	70	70	70	95	95	120	120	120	120	150
Clamp	Single	Single	Single,Double	Single,Double	Single,Double	Single,Double	Single,Double	Single,Double	Double,Quadruple	Double,Quadruple	Double,Quadruple	Double,Quadruple	Double,Quadruple	Double,Quadruple
Clamp Scope(mm)	/	/	530-1500	530-1500	600-2000	600-2000	600-2500	600-2500	800-3000	800-3000	800-3000	800-3000	/	/
Generator Capacity(kW)	150	200	250	250	300	300	350	400	450	600	600	800	800	800
