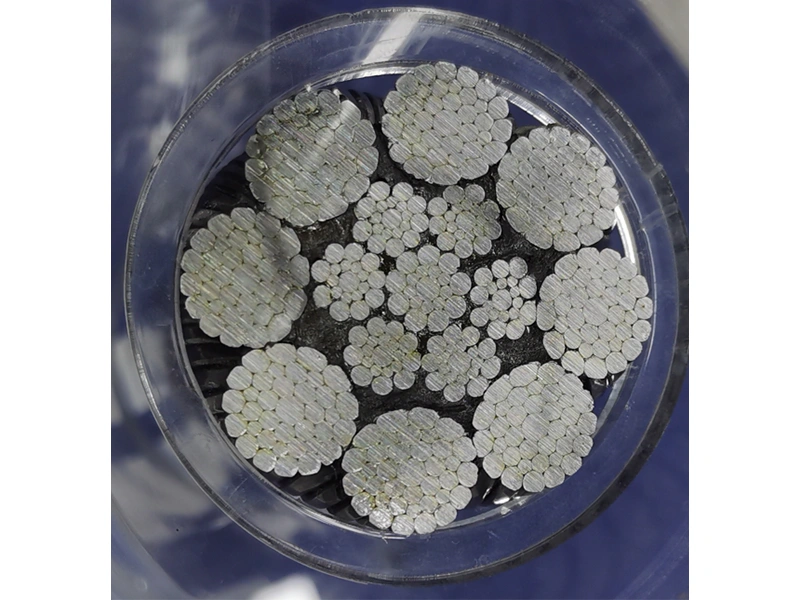

Application Machine of Steel Wire Rope: Truck cranes, tower cranes, crawler cranes and rotary drilling rigs etc..
Application Industries: ports, shipbuilding, marine engineering, construction machinery, elevators, metallurgy, mining, petroleum, communications, coal, forestry, marine fishing, and power etc.
Technology：Forging, Laid
Material：Carbon Steel, Stainless steel
Coated：Galvanized, bright polished, PVC coated and others
Advantages：excellent anti-rotation, flexibility and squeeze resistance, high breaking force.
| Diameter (mm) |
Minimum breaking tensile force (KN) |
Strength (MPa) |
| 20 | 307 | 1870 |
| 22 | 371 | 1870 |
| 24 | 442 | 1870 |
| 26 | 518 | 1870 |
| 28 | 601 | 1870 |
| 30 | 690 | 1870 |
| 32 | 790 | 1870 |
| 34 | 890 | 1870 |
| 36 | 990 | 1870 |
| 38 | 1110 | 1870 |
| 40 | 1230 | 1870 |
| 42 | 1350 | 1870 |
| 46 | 1620 | 1870 |
| 14 | 150 | 1870 |
| 16 | 196 | 1870 |
| 18 | 240 | 1870 |
| 16 | 196 | 1870 |
| 19.5 | 300 | 1870 |
SWDM Series Steel Wire Rope–Main hoist
| Machine | Item No. |
| SWDM60 | 704105200001 |
| SWDM120 | 704105002801 |
| SWDM150 | 704105002804 |
| SWDM160H | 704105002804 |
| SWDM160 | 704105002804 |
| SWDM200 | 704105002804 |
| SWDM220 | 704105002804 |
| SWDM260 | 704105032006 |
| SWDM280 | 704105032006 |
| SWDM300H | 704105032006 |
| SWDM360H-II | 704105040010 |
| SWDM360H | 704105040010 |
| SWDM400H | 704105040010 |
| SWDM450 | 704105040010 |
| SWDM550 | 704105046001 |
| SWDM600 | 704105046001 |
SWDM Series Steel Wire Rope–Pressurization
| Machine | Item No. |
| SWDM220A | 704105002402 |
| SWDM280A | 704105002402 |
| SWDM360H-II | 704105002804 |
| SWDM400 | 704105002804 |
| SWDM450 | 704105002804 |
| SWDM550 | 704105003201 |
| SWDM600 | 704105003201 |
XCMG Series Steel Wire Rope–Main hoist
| Machine | Item No. | Diameter (mm) |
| XR130E | 420705139 | 26 |
| 420707869 | 26 | |
| XR150DⅢ | 420200825 | 28 |
| 420707870 | 28 | |
| XR160E | 420200825 | 28 |
| 420201235 | 28 | |
| XR160ES | 420708670 | 28 |
| XR168E | 420202444 | 28 |
| XR180D、XR180DⅡ XR200E |
420100337 | 28 |
| 420106536 | 28 | |
| XR220D、XR220DⅡ | 420902585 | 30 |
| 420106537 | 30 | |
| XR240E | 420902586 | 32 |
| 420603767 | 32 | |
| XR280D、XR280DII | 420902587 | 32 |
| 420400948 | 32 | |
| XR280E、XR320E | 420708208 | 36 |
| 420606756 | 36 | |
| XR320D(XR300D) | 420902588 | 36 |
| 420801531 | 36 | |
| XR360 | 420300182 | 36 |
| 420300735 | 36 | |
| 420302927 | 36 | |
| 420302928 | 36 | |
| XR360E、XR380E XR400E(Diameter 36) |
420302927 | 36 |
| 420302928 | 36 | |
| XR360E、XR380E XR400E(Diameter 40) |
420303321 | 40 |
| 420303322 | 40 | |
| XRS1050(XR360D) | 420902589 | 40 |
| 420902406 | 40 | |
| XR420D(XR460D) | 421003541 | 46 |
| 421006123 | 46 | |
| XR400D | 420902590 | 40 |
| 420902407 | 40 | |
| XR450E | 420903372 | 42 |
| 420903373 | 42 | |
| XR460E | 421010717 | 42 |
| 421010714 | 42 | |
| XR550D、XR580HD | 421003910 | 44 |
| XR600E | 420902596 | 48 |
| XR700E | 420903822 | 52 |
| 420903823 | 52 | |
| 420903824 | 52 | |
| XR800E | 420902298 | 52 |
XCMG Series Steel Wire Rope–Auxiliary hoist
| Machine | Item No. | Diameter (mm) |
| XR130E | 420705145 | 16 |
| XR150DⅢ | 801337336 | 16 |
| XR160E、XR160ES、XR168E | 801337613 | 16 |
| XR180D、XR180DⅡ、XR180DⅢ、XR200E | 801337636 | 20 |
| XR240E | 801337536 | 20 |
| XR220D、XR220DⅡ、XR220DⅣ | 801337337 | 20 |
| XR280D、XR280DII、XR360 | ||
| XR280E、XR320E | ||
| XR360E、XR380E、XR400E | ||
| XR320D(XR300D) | ||
| XRS1050(XR360D) | ||
| XR400D | ||
| XR450E | ||
| XR460E | ||
| XR420D、XR550D | 801337394 | 28 |
| XR600E、XR700E、XR800E | 801337786 | 28 |
XCMG Series Steel Wire Rope–Pressurization
| Machine | Item No. | Diameter (mm) |
| XR220DⅡ | 801337279 | 24 |
| 801337277 | 24 | |
| XR280DⅡ | 801337280 | 24 |
| 801337281 | 24 | |
| XR320D | 801337282 | 26 |
| 801337283 | 26 | |
| XR400D | 840734992 | 28 |
| 840734993 | 28 | |
| XR420D | 801337286 | 28 |
| 801337287 | 28 | |
| XR130E | 801337398 | 20 |
| 801337399 | 20 | |
| XR180DⅡ | 801337277 | 24 |
| 801337278 | 24 | |
| XR400E | 801337284 | 26 |
| 801337285 | 26 | |
| XR160E | 801337690 | 20 |
| 801337691 | 20 | |
| XR200E | 801337617 | 24 |
| 801337618 | 24 | |
| XR240E | 801337537 | 24 |
| 801337538 | 24 | |
| XR360E（短钻桅标配） | 801337783 | 26 |
| 801337782 | 26 | |
| XR360E（长钻桅选配） | 801338081 | 26 |
| 801338080 | 26 | |
| XR280E | 801337902 | 26 |
| 801337901 | 26 | |
| XR450E（标配） | 801338229 | 28 |
| 801338230 | 28 | |
| XR450E（选配） | 801338155 | 28 |
| 801338235 | 28 | |
| XR460E | 801338197 | 26 |
| 801338198 | 26 | |
| XR550D、XR580HD（标配） | 801337491 | 32 |
| 801338187 | 32 | |
| XR550D、XR580HD（选配） | 801338188 | 32 |
| 801337476 | 32 | |
| XR600E | 801338078 | 34 |
| 801338078 | 34 | |
| XR700E | 801338078 | 34 |
| 801338078 | 34 | |
| XR800E | 801337679 | 40 |
| 801337677 | 40 | |
