Rock Drilling Bucket for Rotary Drilling Rig Cylindrical or Conical Optional

Applicable industries: Bored Piling

Type: Soil Drilling Bucket/ Rock Drilling Bucket/ Cleaning Bucket.

Material: Q355B.

Size/diameter: 600-2500mm, or as per customer demand.

Kelly Box: 130mm, 150mm, 200mm (optional).





You May Also Like...

Core Barrel Bucket Auger

Features

drilling bucket



  • Soil Drilling Bucket

Single-bottom Double Cut Soil Bucket/Double-bottom Double Cut Soil Bucket

Applications:

  1. Clay, silt, loose to medium dense sand and gravel, up to coarse gravel.
  2. Double Cut soil bucket is recommended in cased/uncased and for bigger diameter piles.

Features:

1 Cylindrical barrel or Conical barrel(optional).

2 Throughout ventilation hole.

3 Hard facing strips for wear protection.

4 Kelly box 130mm,150mm,200mm (optional).



  • Rock Drilling Bucket

Single Cut Rock Bucket/Double Cut Rock Bucket



Applications:

1 Very dense sand and gravel, weak rock and up to coarse gravel.

2 Double cut rock bucket is recommended in uncased bores or for bigger diameters and for secant pile walls.



Features:

1 Cylindrical barrel or Conical barrel(optional).

2 Throughout ventilation hole.

3 Hard facing strips for wear protection.

4 Sturdy and wearable rock pilot for accurate positioning.

5 Kelly box 130mm,150mm,200mm (optional).

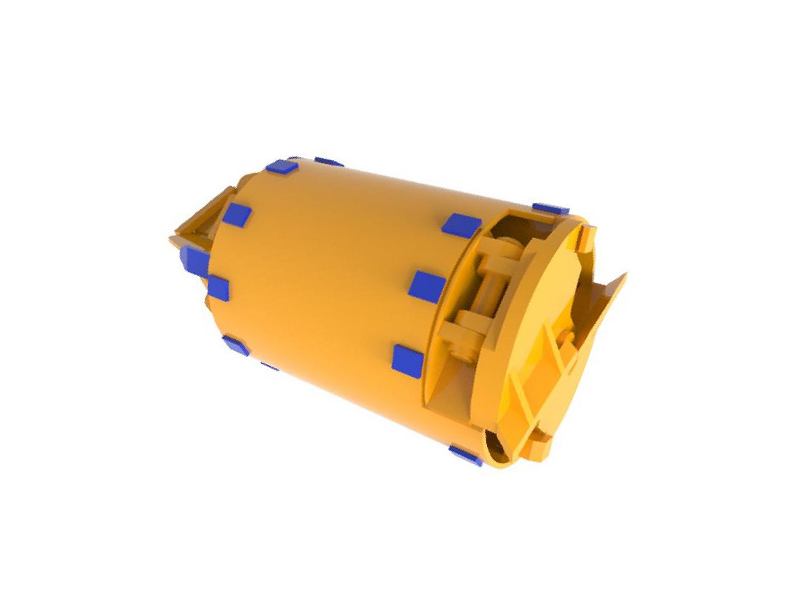

  • Cleaning  Drilling Bucket



Applications:

Cleaning the bottom of borehole.



Features:

1 Cylindrical barrel or Conical barrel(optional).

2 Throughout ventilation hole.

3 Hard facing strips for wear protection.

4 Kelly box 130mm,150mm,200mm (optional).

Parameters
  • Soil Drilling Bucket
Drilling Dia.

mm

Shell Dia.

mm

Shell Length

mm

Shell Thickness

mm

Teeth Qty

Pcs

Single-cut Weight

kg

Double-cut Weight

kg

600 550 1200 20 4 686 656
700 650 1200 20 4 824 784
800 700 1200 20 4 959 909
900 800 1200 20 5 1120 1051
1000 900 1200 20 6 1276 1186
1100 1000 1200 20 6 1416 1336
1200 1100 1200 20 6 1585 1455
1300 1200 1200 20 7 1828 1668
1400 1300 1200 20 8 2022 1841
1500 1400 1200 20 9 2078 1938
1600 1500 1200 20 10 2392 2152
1700 1600 1000 20 10 2401 2271
1800 1700 1000 20 11 3073 2823
2000 1900 800 20 12 3480 3160
2200 2100 800 25 14 4019 3669
2500 2400 800 25 16 4556 4076
Other sizes can be manufactured as per customer demand.



  • Rock Drilling Bucket
Drilling Dia.

mm

Shell Dia.

mm

Shell Length

mm

Shell Thickness

mm

Teeth Qty

Pcs

Single-cut Weight

kg

Double-cut Weight

kg

600 550 1200 20 7 712 682
700 650 1200 20 8 866 826
800 700 1200 20 9 971 921
900 800 1200 20 12 1130 1061
1000 900 1200 20 14 1280 1190
1100 1000 1200 20 16 1440 1360
1200 1100 1200 20 16 1643 1513
1300 1200 1200 20 18 1938 1778
1400 1300 1200 20 19 2100 1919
1500 1400 1200 20 20 2304 2164
1600 1500 1200 20 22 2668 2428
1700 1600 1000 20 24 2535 2405
1800 1700 1000 20 26 3207 2957
2000 1900 800 20 28 3567 3247
2200 2100 800 25 30 4137 3787
2500 2400 800 25 32 4716 4236
 Other sizes can be manufactured as per customer demand.



  • Cleaning Drilling Bucket
Drilling Dia.

mm

Shell Dia.

mm

Shell Length

mm

Shell Thickness

mm

Weight

kg

600 550 1200 20 740
700 650 1200 20 837
800 700 1200 20 920
900 800 1200 20 1024
1000 900 1200 20 1109
1100 1000 1200 20 1293
1200 1100 1200 20 1431
1300 1200 1200 20 1591
1400 1300 1200 20 1775
1500 1400 1200 20 1988
1600 1500 1200 20 2194
1700 1600 1000 20 2592
1800 1700 1000 20 2875
2000 1900 800 20 3350
2200 2100 800 25 3829
2500 2400 800 25 4622
Other sizes can be manufactured as per customer demand.
Details



Workshop
Advantages

1. high quality raw materials and high steel strength.

2.Simple operation.

3.High wear resistance.

4.High drilling efficiency.

5.High hardness.

6.Good roundness of the cylinder.

7.Long using life.

Packing and Delivery
