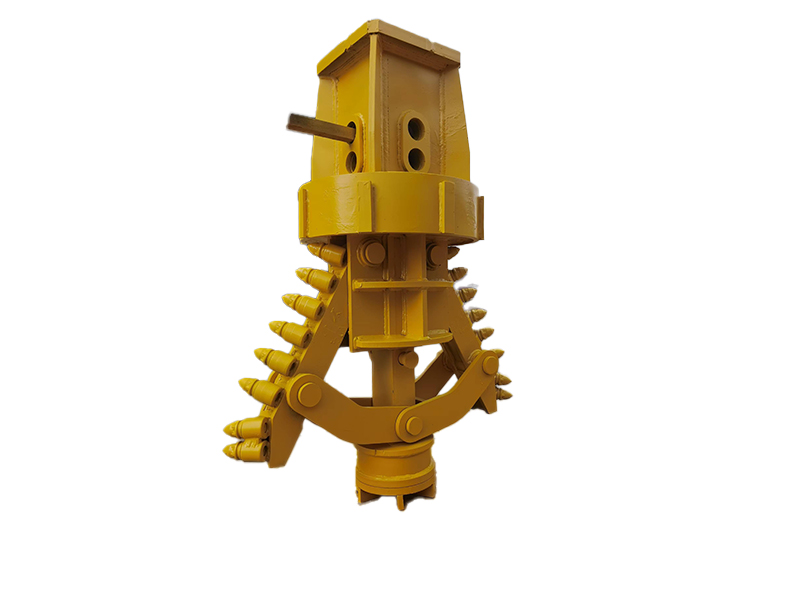

Belling Bucket for Pile Bottom Enlarging in Pile Foundation

Belling Bucket Applicable industries: Bored Piling

Type: Clam drilling bucket, Coring barrel, Rock belling bucket, Bi-cut belling bucket, Tri-cut belling bucket

Size/opening diameter: 1200-5000mm, or as per customer demand.

Chat Online Leave Message

Features
Parameters
Inquiry

Features

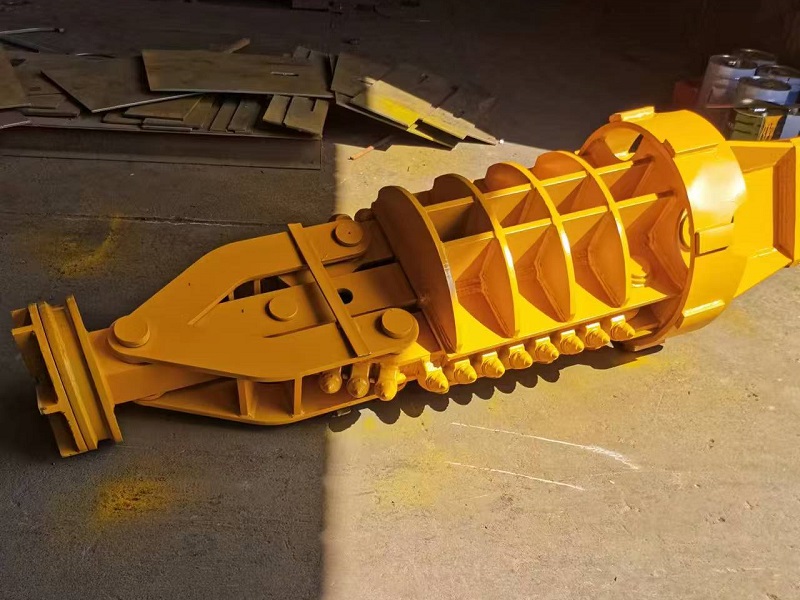

Under-reamed piles can significantly enhance the bearing capacity of pile foundations, which has led to the development of belling buckets. Among the various types, the mechanical belling bucket is a common one.

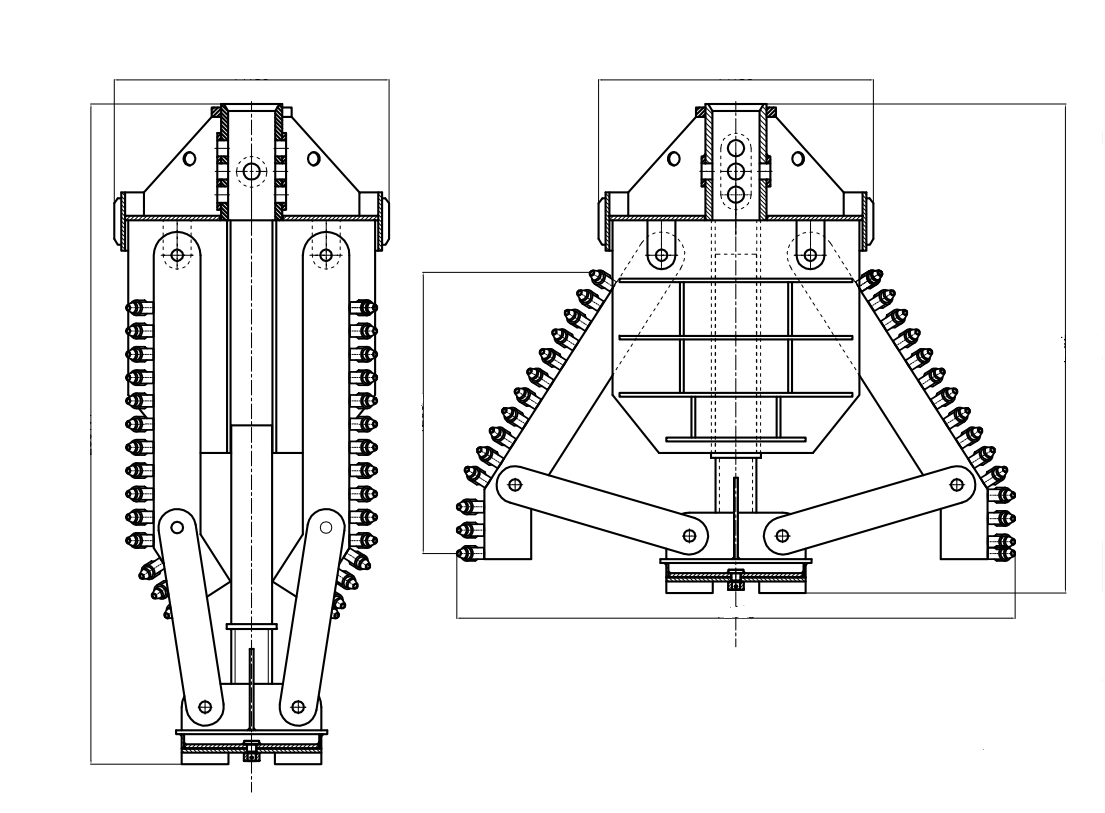

It operates by applying axial pressure through the kelly bar to deploy the reaming wings, and then uses torque to rotate and ream the borehole wall, thereby meeting the design requirements for under-reaming.

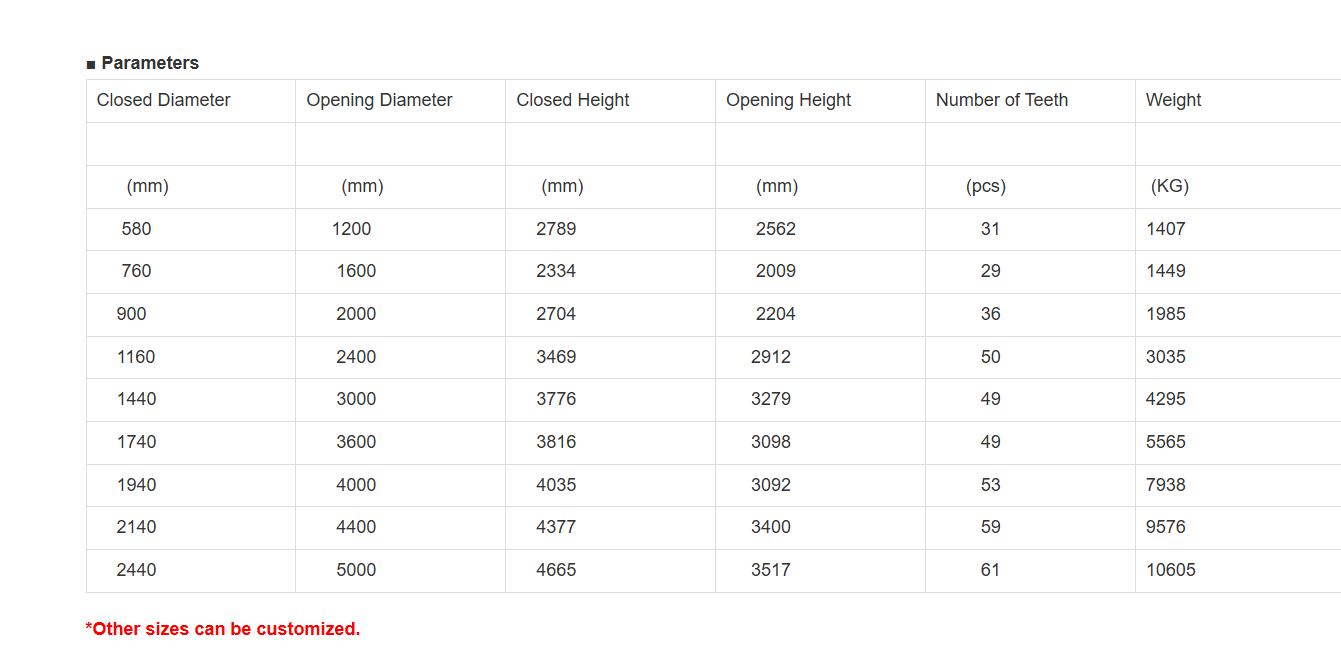

Parameters

Download

: Piling Hammer Catalogue; (PNG,45 KB)
