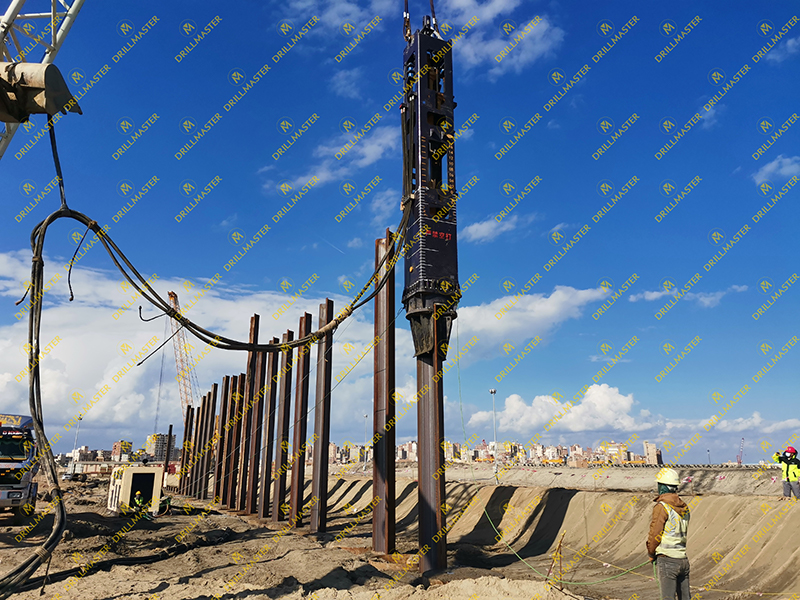

I. Introduction to Hydraulic Impact Hammers
A Hydraulic Impact Hammer is a heavy-duty construction equipment that utilizes hydraulic power for pile driving operations. It is widely used in engineering projects such as bridges, docks, high-rise building foundations, and offshore wind farms. Its primary function is to drive foundation piles into the ground using high-frequency, controllable impact forces to ensure structural stability.
II. Structural Components
A Hydraulic Impact Hammer mainly consists of the following parts:
1) Hammer Body: Includes the hammer head, hammer frame, and piston. This is the core component generating impact energy.
2) Hydraulic Cylinder and Piston System: Hydraulic oil drives the piston upward and releases it, causing the hammer body to perform a downward striking motion.
3) Guidance System: Ensures alignment between the hammer body and the pile during striking, preventing deviation.
4) Hydraulic Power Pack: Provides high-pressure hydraulic oil, serving as the power source for the entire system.
5) Control System: Includes manual or automatic control modules, enabling functions like energy adjustment, frequency control, and stroke setting.
III. Working Principle
The hydraulic impact hammer operates by using hydraulic power to drive the piston upward. Subsequently, by releasing high-pressure oil, the piston drives the hammer head to fall freely or under forced downward motion, generating a powerful impact force that strikes the pile, driving it progressively into the ground. The entire process allows for precise control of striking frequency, impact energy, and pile driving depth.
IV. Main Advantages
1) Adjustable Energy, Precise Control: The hydraulic impact hammer can flexibly adjust impact energy and frequency based on different pile types, diameters, lengths, and ground conditions. Compared to traditional diesel hammers or drop hammers, the hydraulic system allows precise control of the force and stroke length of each blow. This makes the pile driving process more controllable and safer, effectively reducing pile damage or refusal situations. This fine-grained control is particularly crucial in urban high-rise buildings and bridge construction.
2) Low Noise and Vibration, Good Environmental Performance: Utilizing hydraulic drive instead of fuel combustion, hydraulic impact hammers produce relatively lower noise and ground vibration during operation, complying with urban construction and environmental requirements. Especially when working near noise-sensitive areas like residential zones, hospitals, or schools, it significantly reduces disturbance to the surrounding environment, improves project approval rates, and enhances a company's green construction image.
3) High Driving Efficiency, Fast Progress: Hydraulic impact hammers feature high striking frequency and concentrated energy, enabling continuous and stable pile driving. Compared to traditional diesel hammers, their pile penetration rate per unit time is faster, significantly shortening project timelines for large pile foundation projects. Additionally, due to the fast response of hydraulic control, construction efficiency is unaffected by environmental factors like temperature or air pressure, ensuring operational stability.
4) Adaptability to Complex Strata, Wide Range of Applications: By adjusting parameters, hydraulic impact hammers can adapt to various complex geological conditions such as clay, sand layers, gravel layers, and even hard soil layers. They can also be used to drive different types of piles (e.g., steel pipe piles, concrete precast piles, H-piles), offering excellent adaptability and versatility. This meets the engineering needs of diverse fields like ports, bridges, and rail transit.
5) Supports Remote and Automatic Control, High Safety: Hydraulic impact hammers can be equipped with intelligent control systems, enabling remote operation, parameter monitoring, and automatic pile driving. This reduces reliance on manual operation, enhancing operational safety and precision. This automation capability is particularly critical for construction in high-risk areas like offshore wind farms.
V. Disadvantages
1) High Equipment Investment Cost: The hydraulic impact hammer unit itself is expensive, and it requires auxiliary equipment like hydraulic power packs, pipelines, control systems, and lifting devices. The initial procurement and installation costs are significantly higher than those of traditional diesel hammers, which may pose budgetary pressure for some small and medium-sized construction contractors.
2) Complex Equipment System, Lengthy Debugging Period: The hydraulic system involves multiple control circuits, pressure regulation, and hydraulic oil circulation processes. Initial setup requires specialized engineers for commissioning. If a fault occurs, troubleshooting is relatively complex and difficult to resolve quickly on-site.
3) High Maintenance Threshold, Requires Professional Technical Support: Hydraulic systems demand high requirements for oil quality, seals, and pressure control precision. Operators need a certain level of hydraulic knowledge to perform daily inspections and maintenance. Otherwise, it can easily lead to reduced equipment efficiency or frequent breakdowns.
VI. Typical Application Scenarios
1) Urban Infrastructure Construction: Hydraulic impact hammers are suitable for urban projects like subways, viaducts, highway bridges, and high-rise buildings. Their low noise and vibration characteristics give them a distinct advantage in urban environments, meeting strict environmental and construction noise standards.

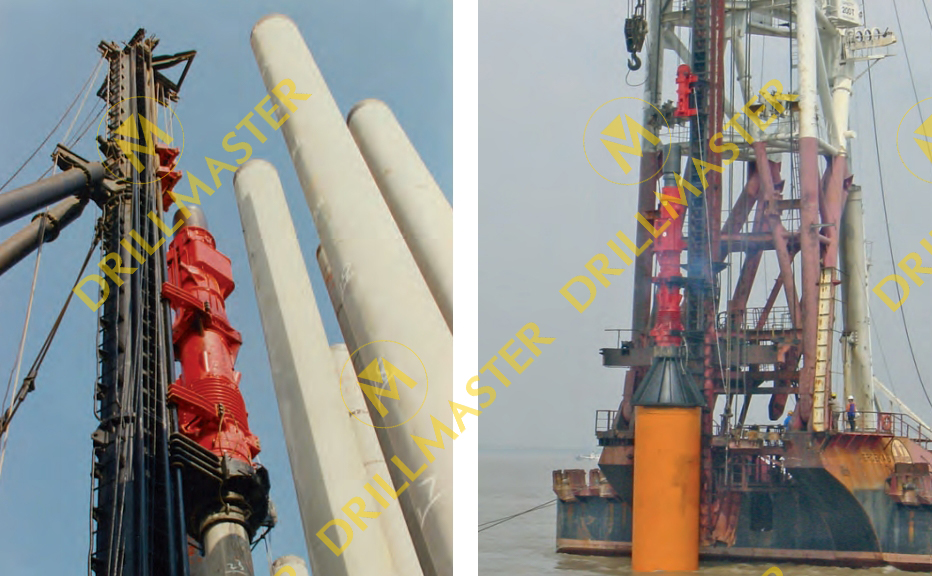

2) Port and Wharf Engineering: Port projects often require driving large-diameter steel pipe piles in water or near shorelines, facing complex geological conditions and harsh hydrological environments. Hydraulic impact hammers provide powerful and stable impact forces, adapting to various strata like sand, gravel, and soft rock, making them the preferred equipment for port foundation construction.

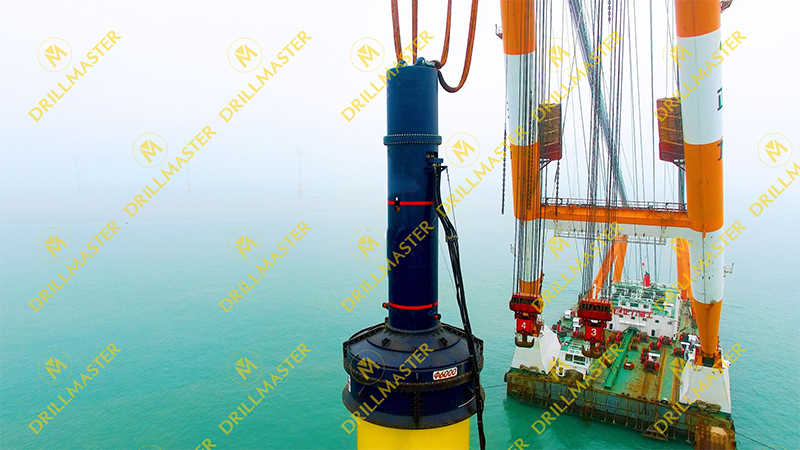

3) Offshore Wind Power Pile Foundation Construction: In offshore wind projects, hydraulic impact hammers are often paired with jacket platforms, jack-up platforms, or floating cranes for driving steel pipe piles, underwater piles, or conductor piles. Their automation and ability to withstand sea winds and waves make them one of the mainstream construction equipment.
4) Water Conservancy and River/Sea-Crossing Bridge Projects: In water bodies like rivers, lakes, and bays, hydraulic impact hammers are suitable for driving bridge pier foundation piles. Their advantages include high alignment accuracy and controllable penetration depth, effectively improving the quality and efficiency of underwater pile foundation construction.
5) Environmentally Sensitive Areas: In areas near schools, hospitals, or residential zones with strict noise and emission requirements, hydraulic impact hammers, as "green pile driving equipment," meet the need for low-noise, smoke-free construction and are the preferred choice for environmentally sensitive projects.
VII. Usage Precautions
1) Ensure Hydraulic System Cleanliness: Regularly change hydraulic oil and filters to prevent contaminants from damaging hydraulic components.
2) Avoid Pile Deviation and Inclination: Use the guidance system to align the pile and maintain verticality.
3) Control Striking Frequency and Energy: Avoid damaging the soil strata or the pile itself, especially when driving in soft soil or with steel pipe piles.
4) Regularly Inspect Connectors and Bolts: Prevent mechanical damage or unstable striking caused by loosening.
5) Pay Attention to Hydraulic Oil Selection in Extreme Temperatures: Select hydraulic oil suitable for high or low temperatures to maintain system stability.
6) Check Safety Systems and Pressure Gauges Before Operation: Ensure normal pressure, verify emergency stop buttons are functional, and guarantee personnel safety.

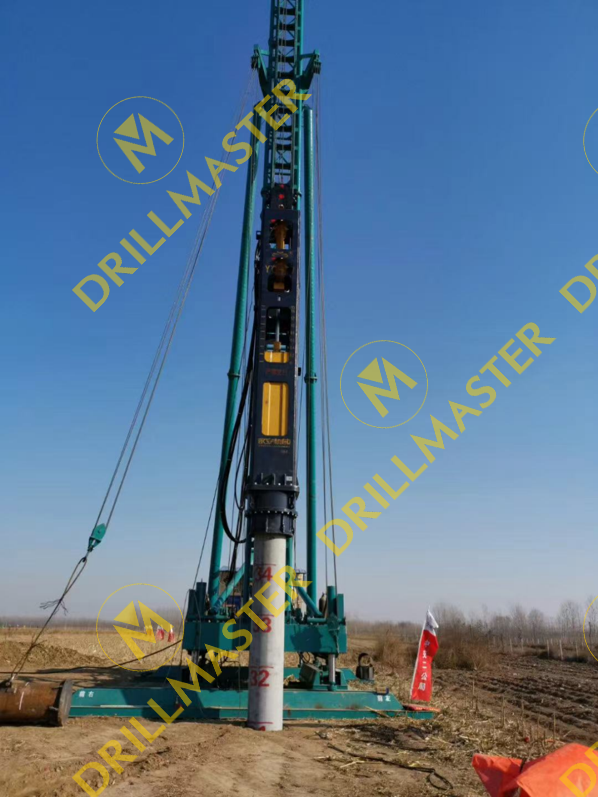

I. Introduction to Diesel Impact Hammers
A Diesel Impact Hammer is a mechanical device that utilizes the expansive force generated by diesel combustion to drive the hammer downward, impacting and driving piles into the ground. It is commonly used in foundation piling projects. Its structure is relatively simple and requires no external power source, making it particularly suitable for piling projects in areas with difficult access or remote field operations.
II. Structural Components
1) A Diesel Hammer mainly consists of the following parts:
2) Cylinder: Forms the combustion chamber and provides the channel for the piston's up-and-down movement. It also serves as the main frame of the hammer assembly.
3) Piston: Generates impact energy through free fall and simultaneously compresses air to ignite the diesel fuel.
4) Fuel Supply System: Includes the fuel pump, fuel lines, and injector nozzle(s), responsible for injecting diesel fuel into the combustion chamber.
5) Ignition Mechanism (Compression Ignition for older models): Diesel fuel injected into the high-temperature, high-pressure environment self-ignites, producing expansive force.
6) Guide Frame and Hammer Cap (Anvil): Ensures coaxial movement between the hammer body and the pile, reducing misalignment or damage.
III. Working Principle
The Diesel Impact Hammer operates on the internal combustion principle:
1) The piston falls freely from a height and strikes the anvil at the base of the hammer.
2) Upon impact, air is compressed, and diesel fuel is injected.
3) The diesel fuel rapidly combusts under high temperature and pressure, generating expanding gases that force the piston upward.
4) The piston then falls freely again, initiating the next striking cycle.
5) The entire process is a continuous, self-cycling combustion and impact sequence, requiring no external electrical power or hydraulic power pack.
IV. Main Advantages
1) Low Cost, High Value for Money: Diesel hammers have a simple structure, resulting in lower manufacturing and maintenance costs. Their overall price is typically much lower than modern piling equipment like hydraulic hammers or vibratory hammers. For contractors with limited budgets, diesel hammers offer a high return on investment, especially suitable for small-to-medium-sized projects and long-term use in resource-limited areas.
2) No External Power Required, Strong Independent Operation Capability: Relying solely on diesel combustion for power, diesel hammers are independent of external equipment like electricity or hydraulic power packs. They can operate autonomously in remote environments without power, such as wilderness, mountains, riverbeds, and tidal flats. This strong "self-sustaining capability" makes them widely applicable to foundation construction sites requiring high mobility.
3) Mature Operation Methods, Widely Transferred Experience: As a traditional piling device, diesel hammers benefit from extensive construction experience, and their operating principle is easy to understand. Operators can learn to use them with basic training, even without advanced academic backgrounds. Most construction crews have accumulated experience in their maintenance, upkeep, and troubleshooting, ensuring continuity on site.
4) Convenient Maintenance, High Parts Commonality: Diesel hammer components have standardized specifications, and spare parts are widely available, minimizing the risk of "part shortages" due to unique designs. Common parts like pistons, injectors, cylinder liners, and guide rails can be replaced quickly, enhancing construction efficiency.
5) High Impact Force, Suitable for Shallow Piles and Soft Soil Conditions: Diesel hammers deliver strong, rhythmic blows with high instantaneous impact force. They can drive piles rapidly in soft or medium-dense soils like clay, sand, fill, and silt, improving work progress.
V. Disadvantages
1) Severe Noise and Pollution, Environmentally Unfriendly: Diesel hammers generate extremely high noise levels during operation, often exceeding 100 decibels, while also emitting significant amounts of black smoke and exhaust fumes. For construction sites near residential areas, schools, or hospitals, their operation significantly impacts the surrounding environment and population. They are frequently restricted or banned by environmental regulations.
2) Unstable Impact Energy, Poor Control Precision: The striking force of a diesel hammer relies entirely on gravity fall and fuel combustion, making it impossible to finely adjust impact energy and stroke. This makes them unsuitable for high-standard projects requiring precise pile driving and pile integrity. They may fail to drive piles in hard soil layers, while potentially punching through or shattering pile heads in soft layers.
3) Cold Start Difficulty, Performance Degradation in Cold Climates: Diesel combustion efficiency drops at low temperatures, making starting difficult. Pre-heating devices or extended idling for warm-up may be required. In high temperatures, the fuel system is prone to vapor lock or fuel vaporization issues, affecting continuous operation.
4) Low Automation Level, Reliance on Manual Judgment: Parameters like driving energy, pile alignment, and penetration depth often rely on operator experience and judgment. They lack intelligent control or data logging functions, leading to construction inaccuracies and an inability to meet the requirements of digitalized, intelligent construction sites.
5) Higher Safety Hazards: The combustion process requires a high-temperature, high-pressure environment, creating risks of fire or explosion. Additionally, the high exhaust temperatures and intense noise pose occupational health risks for workers operating in close proximity for extended periods.
VI. Typical Application Scenarios
1) Piling Along Highways and Railways: In construction sites in mountainous areas, plateaus, or uninhabited regions, diesel hammers are ideal for installing piles for bridge piers, slope retaining walls, etc., due to their independent operation capability and ease of deployment. They are particularly useful in the early stages of construction where access roads are unavailable and power is absent.
2) Rural Infrastructure Projects: For foundational works in rural construction, village roads, bridges, canals, and culverts where budgets are tight and site conditions are poor, diesel hammers provide an efficient, low-cost piling solution.
3) Small Port and Water Conservancy Projects: In small ports, simple docks, reservoir spillways, or embankment reinforcement projects, diesel hammers can be used to drive steel pipe piles or timber piles. They demonstrate strong adaptability, especially on temporary work platforms or undeveloped shorelines.
4) Overseas Projects and Aid Construction: In regions like the Middle East, Africa, and Southeast Asia, where construction resources are limited and power supply is unstable, diesel impact hammers are widely used in road/bridge construction, power plant foundations, and water supply pipeline networks due to their mature technology, ease of transport, and strong adaptability. They are standard equipment for international construction teams.
5) Emergency Rescue and Post-Disaster Recovery Construction: In the event of disasters like earthquakes, floods, or road collapses, diesel hammers can be rapidly deployed to install temporary foundation piles or structural supports. Their independence from external power and high mobility enable quick restoration of infrastructure.
VII. Usage Precautions
1) Adhere to Fuel Specifications: Use qualified diesel fuel to prevent waxing in cold weather or explosion risks in high heat. Regularly clean injector nozzles and fuel lines.
2) Maintain Vertical Operation: Ensure the guide frame is secure and reliable to prevent pile misalignment and eccentric wear on the hammer.
3) Control Striking Rhythm: Avoid excessively fast striking, which can cause equipment overheating, energy instability, or pile head damage.
4) Ensure Ventilation and Manage Exhaust: Be mindful of exhaust fumes during operation. Operators must wear protective equipment to avoid prolonged inhalation of exhaust gases.
5) Regularly Inspect Piston-Cylinder Clearance: Long-term use causes wear on sealing surfaces. Replace seals or piston components according to the operation manual.
6) Implement Noise Protection Measures: Erect acoustic barriers where permissible in noise-sensitive areas. Operators must wear ear protection like earmuffs.
| Comparison Dimensions | Hydraulic Impact Hammer | Diesel Impact Hammer |
| Working Principle | Uses hydraulic oil to drive the piston up and down to generate impact force | Relies on the free fall of the piston and the spontaneous combustion of diesel to generate impact force |
| Power Source | External hydraulic station, electric motor, or diesel engine to drive the hydraulic system | Self-contained fuel drive (no external power or hydraulic system required) |
| Energy Control | Precisely controllable impact energy and frequency | Energy cannot be adjusted; the impact frequency is determined by the piston's drop and combustion cycle |
| Automation Level | High, supports remote control, automatic monitoring, and data logging | Low, relies primarily on manual judgment and experience |
| Pile Driving Accuracy | High, strong controllability, suitable for high-precision pile foundation construction | Low accuracy, prone to pile deviation or pile head damage |
| Environmental Performance | Low noise, no black smoke, low vibration, environmentally friendly | High noise, heavy emissions, strong vibration, significant environmental impact |
| Applicable Pile Types | Suitable for large or demanding piles such as steel pipe piles, concrete piles, and steel sheet piles. | Mostly suitable for small and medium-sized steel pipe piles, wooden piles, and precast concrete piles. |
| Applicable Ground Formations | Suitable for various complex ground forms, including soft soil, hard soil, and gravel formations. | Mainly used in soft soil and medium-density formations, with limited effectiveness against hard soil. |
| Applicable Scenarios | High-standard projects such as urban construction, large-scale foundations, ports and terminals, and offshore wind power. | Remote areas, off-road areas, along highways and railways, low-cost projects, or emergency projects. |
| Startup and Ease of Use | Requires connection to a hydraulic system for startup, requiring extensive prep work. | Quick startup without external power, making it easy to use. |
| Maintenance and Repair | Complex system requires regular maintenance of the hydraulic system and electronic control components. | Simple structure, low maintenance costs, and readily available common spare parts. |
| Equipment Price | High, typically used for projects with high performance requirements. | Low, suitable for small and medium-sized construction companies with limited budgets. |
| Operating Cost | High energy consumption, requiring hydraulic oil, electricity, or fuel. | Fuel costs are low, but additional environmental treatment costs may be required if emissions do not meet standards. |
| Project Type/Situation | Recommended Equipment Type | Recommendation |
| Urban Infrastructure, High Environmental Requirements | Hydraulic Hammer | Low Noise, Low Emissions, High Precision |
| Inconvenient Access, No External Power Site | Diesel Hammer | Self-Sustaining Operation, Flexible Deployment |
| Offshore Platforms, Docks, Bridge Piers, and Other High-Risk Pile Foundations | Hydraulic Hammer | Adjustable Impact Energy to Adapt to Different Pile Lengths and Soil Layers |
| Emergency Repairs or Post-Disaster Recovery | Diesel Hammer | Quick Startup, Independent Operation |
| Precise Pile Driving, Monitoring of Buried Depth and Energy Changes | Hydraulic Hammer | Can Be Linked with Sensor Systems for Digital Construction |
| Economical Projects such as Small Bridges, Highway Culverts, and Rural Drainage | Diesel Hammer | Low Cost, Easy Operation |
