How does Drillmaster sectional casings ensure the quality of deep pile foundation construction?

In major infrastructure projects such as bridges, high-rise buildings, and subways, deep pile foundation construction has always been one of the most technically challenging and risk-prone operations. Especially under complex geological conditions - thick sand layers, gravel beds, quicksand strata, and high groundwater tables - how to prevent borehole wall collapse and ensure pile quality is a problem every engineer must confront. So, how does Drillmaster's sectional casing system guarantee the quality of deep pile foundation construction?

Cast-in-place concrete piles are formed by boring holes directly on site and pouring concrete into them. During the boring process, the stability of the hole wall is the key factor determining whether drilling can proceed smoothly. In strata prone to collapse - such as thick sand layers, gravel layers, and soft soils - once the hole wall loses stability, the consequences range from compromised pile quality to serious cave-in accidents that endanger personnel and equipment.

Conventionally, there are two main methods for wall protection. One is slurry wall protection, which stabilises the hole by injecting bentonite or polymer slurry. However, it is highly dependent on formation conditions and has limited effectiveness in highly permeable or fractured strata. The other is the use of a one-piece steel casing, which can effectively support the wall, but when the borehole is deep, extremely long casings are required, making transportation, hoisting, and on-site handling very difficult.

With years of deep involvement in piling tools and continuous R&D iteration, Drillmaster now offers a full-range sectional casing system. From modular construction to welding processes, from material customisation to accessory coordination, five core design features work in concert to provide a "rigid-yet-flexible" wall-protection solution for deep-hole drilling.

What reliable designs are incorporated in Drillmaster's sectional casings?

I. Modular sectional design - "building-block" flexibility for deep-hole operations

Drillmaster's long casings are designed with standard modular sections, each available in lengths from 1 to 6 metres, which can be freely combined and progressively extended according to the designed pile depth. Connect as many sections as needed - this completely eliminates the transportation, alignment, and lowering difficulties associated with traditional one-piece casings. On site, sections are simply connected one by one using special couplings and lowered step by step. This not only ensures continuous wall protection along the entire borehole, but also greatly reduces the complexity of hoisting and jointing - especially suitable for confined urban sites or ultra-deep pile conditions, turning "deeper means harder" into "deeper means more stable".

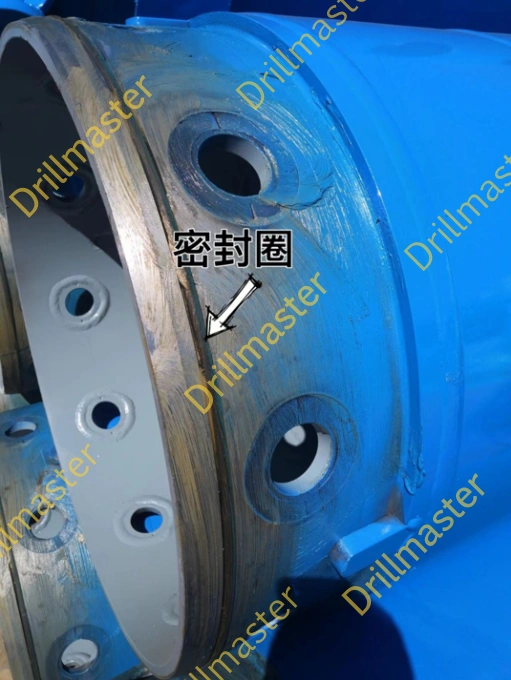

II. Seal ring design - plugging water ingress at the source

At the pin-end (male joint) of each casing, Drillmaster incorporates a high-performance seal ring structure. When adjacent casing sections are screwed and tightened, the seal ring is properly compressed to form a reliable annular sealing band, effectively preventing groundwater and sediment from seeping through the joint gaps. This detail may seem simple, but it is a critical safeguard for ensuring the integrity of the cast concrete, preventing mud entrapment or necking, and ensuring that pile quality passes ultrasonic testing.

III. Customised materials - tailored to each component's role

The casing body, couplings, shoe, and other parts experience significantly different loading, wear, and impact conditions. Drillmaster rejects a one-material-fits-all approach. Instead, we select specific alloy steels or wear-resistant materials for each accessory based on its actual service characteristics, and apply matched heat-treatment processes. The casing body is designed for both rigidity and toughness, the couplings for enhanced fatigue strength, and the shoe teeth for abrasion resistance and rock-breaking capability - full-chain material customisation that reinforces every potential weak point.

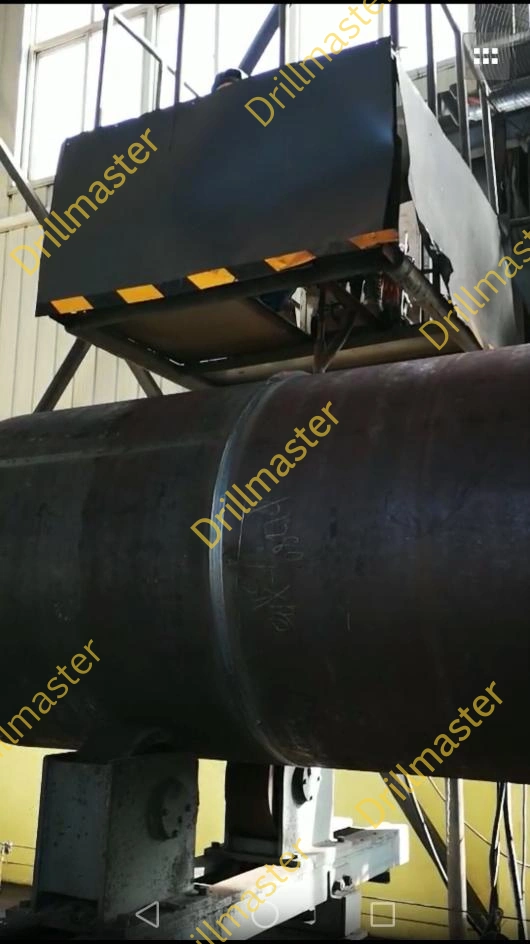

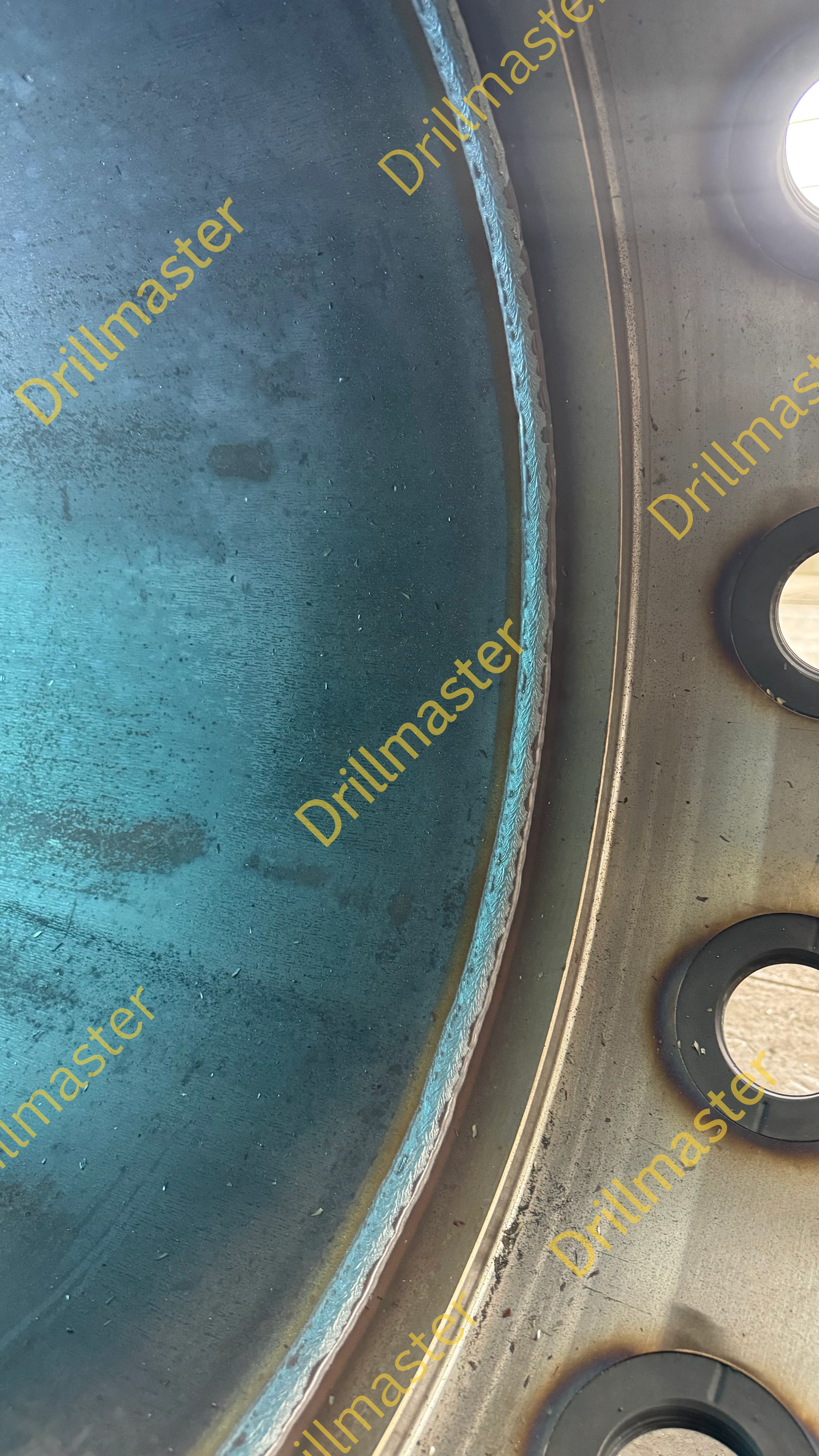

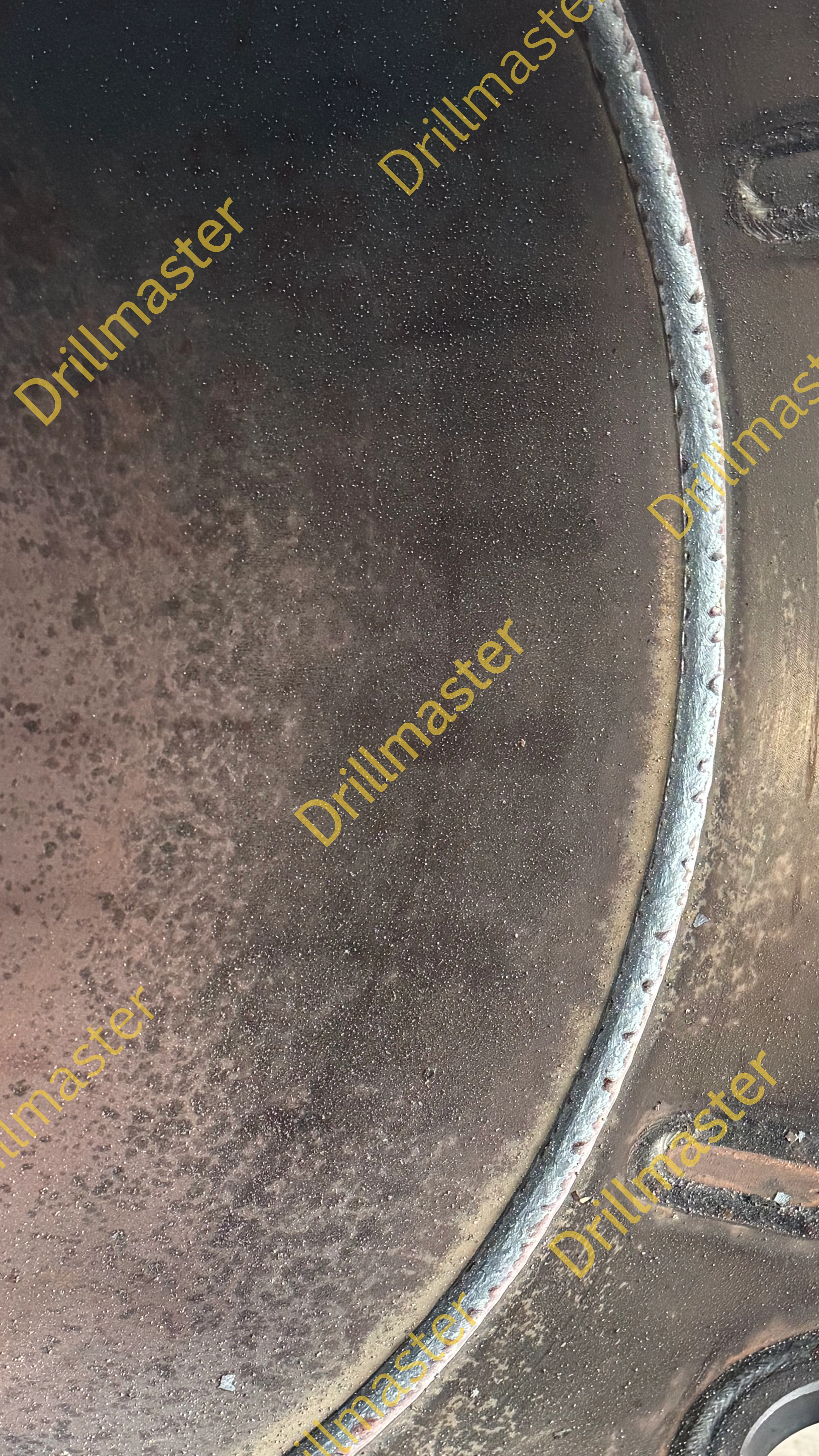

IV. Fully automatic welding process - double insurance on quality and efficiency

Welding quality directly affects the longitudinal load-bearing capacity and bending strength of the casing. Drillmaster has introduced a fully automatic welding production line, where programmable parameters precisely control heat input and bead formation, resulting in dense, bubble-free, fully penetrated, and slag-free welds. Compared with manual welding, the automated process not only ensures consistent weld quality across every casing, but also significantly boosts production efficiency, saving valuable time for tight project schedules. At the same time, uniform and reliable welds eliminate the risk of brittle fracture, enhancing on-site safety.

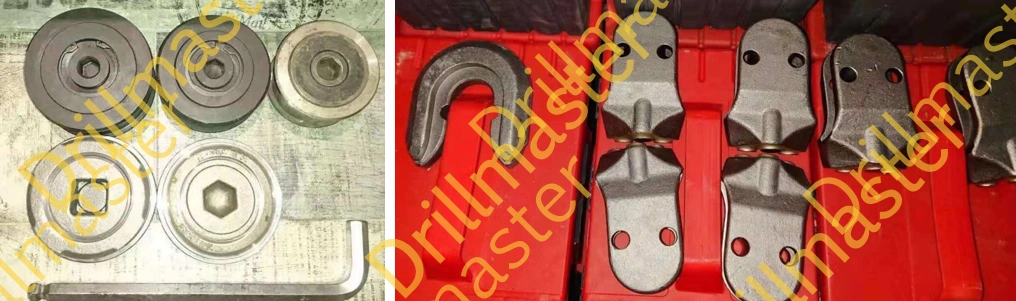

V. One-stop accessory supply - eliminating downtime caused by waiting for parts

In addition to high-quality sectional casings, Drillmaster also supplies casing shoes, drivers, shoe teeth, various couplings, and even oscillators, rotary drilling rigs, crawler cranes and other complete machines. All products are scheduled and shipped simultaneously to the construction site, so customers do not need to place separate inquiries or track multiple logistics batches. From wall-protection tools to power equipment, Drillmaster's package-deal service streamlines procurement management for project teams, avoiding idle time due to staggered delivery dates - enabling a true "arrive and start work" seamless operation.
