2m Diameter 4.25m Length with a Core Barrel – A New Milestone in Pile Drilling

A new milestone has been achieved in large-diameter core drilling with our 2.0 m water-through core barrel.

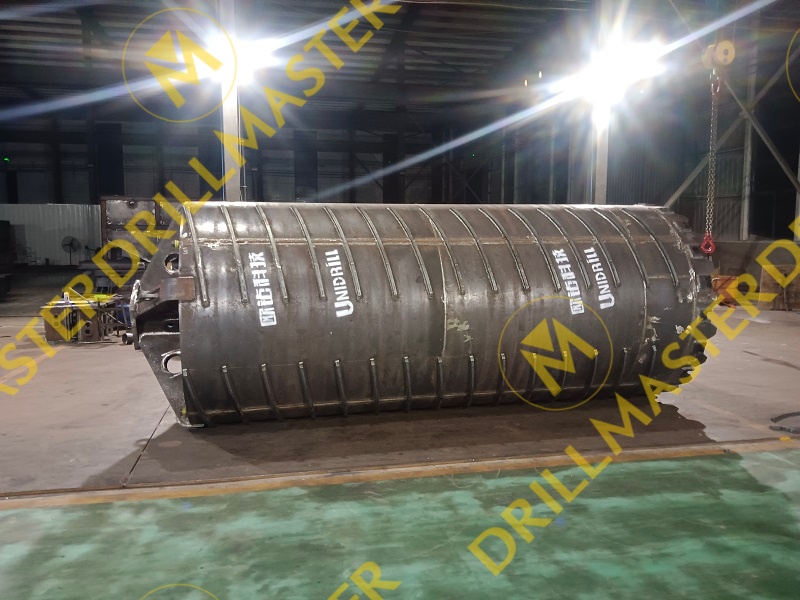

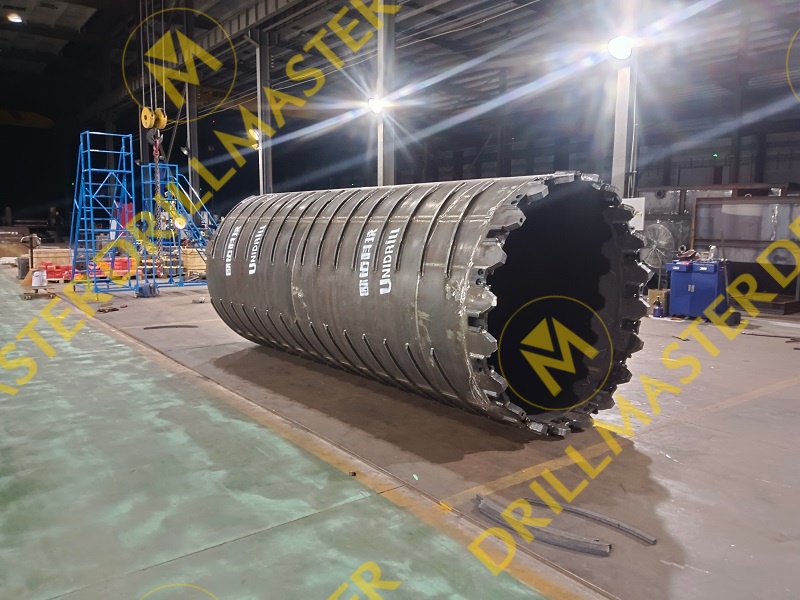

The core barrel, measuring Ø2.0 m × 4.5 m in height and equipped with 20 detachable roller cone bits, successfully drilled through extremely hard 120–160 MPa granite. The longest recovered core reached an impressive 4.25 m, with several core sections measuring approximately 3.8 m.

Key Highlights
Core Diameter: Ø2.0 m
Core Barrel Height: 4.5 m

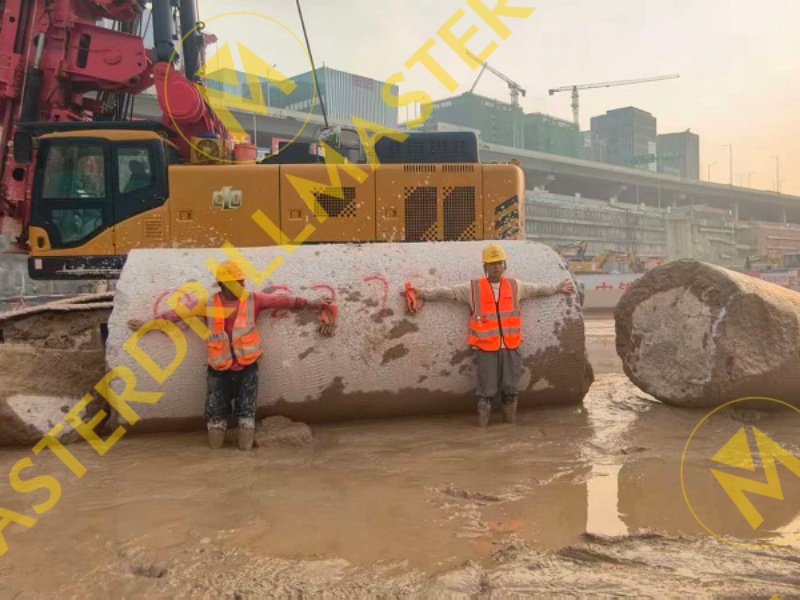

Longest Core Recovered: 4.25 m
Typical Long Core Sections: Approx. 3.8 m
Rock Strength: 120–160 MPa Granite
Cutting System: 20 detachable roller cone bits
Drilling Method: Water-through core drilling
Drilled Volume: Approx. 250 m³

The successful recovery the Drillmaster core barrel's capability in large-scale drilling operations under extremely hard-rock conditions， highlighting the stability, cutting performance and core recovery capability of the detachable roller-cone design.

Drillmaster powers for your foundation!
Drillmaster powers for your large and deep piles foundation!
